NovaStar | ET16S-G(3A4) - Media Server

NovaStar | ET16S-G(3A4) - Media Server

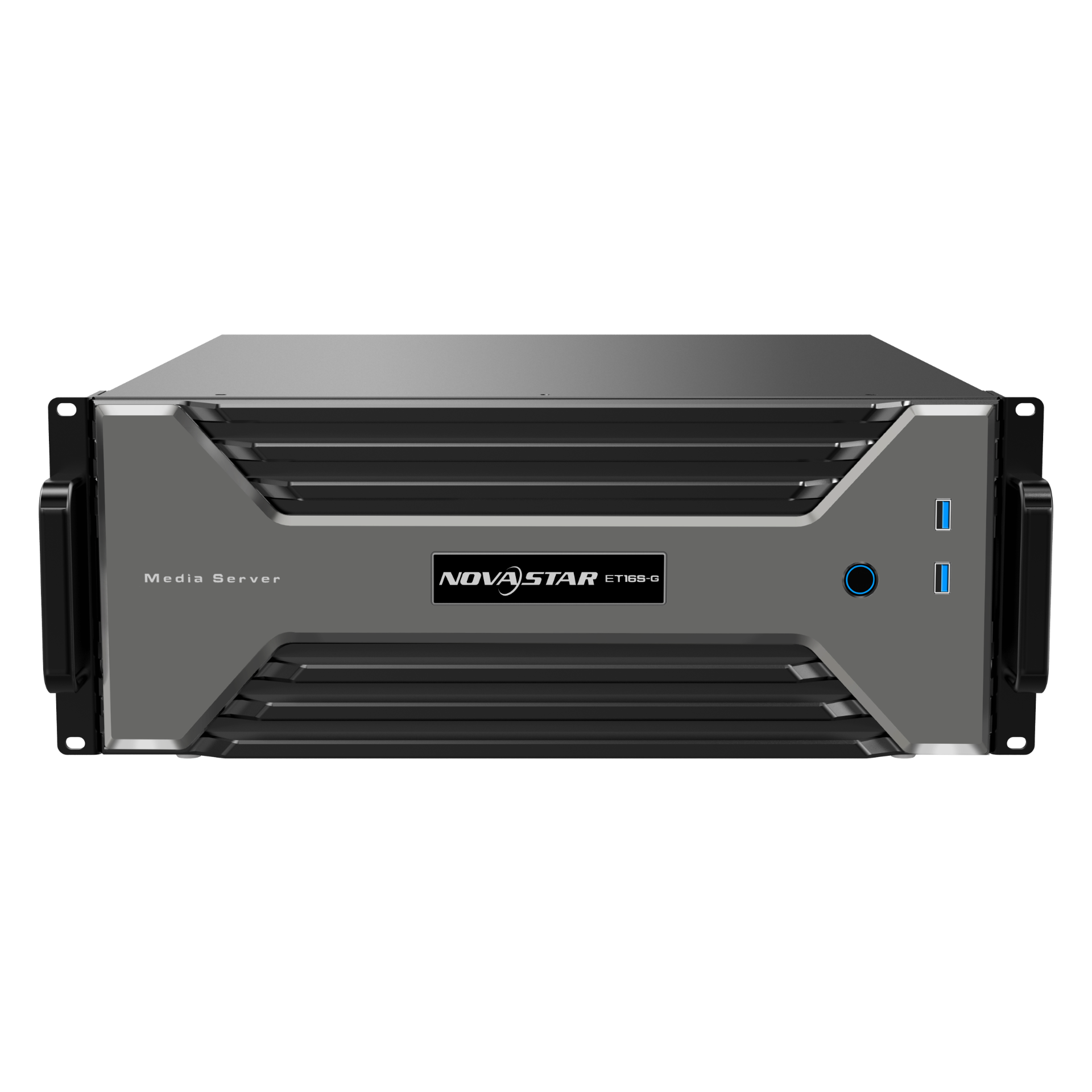

The ET16S-G media server is the latest offering from NovaStar, boasting a 16K ultra-high resolution, pixel-to-pixel screen loading, and multiple high-performance graphics cards.

Equipped with a powerful workstation motherboard, Intel Xeon processor, and ECC high-speed memory, the ET16S-G enables flawless frame-synchronized output of four graphics cards. A single ET16S-G media server can replace four traditional media servers with single graphics card configurations, while also having the ability to link multiple servers for frame-synchronized mosaic and backup, perfect for meeting the requirements of ultra-high resolution displays exceeding 16K.

Incorporating the latest version of Kompass FX3 multimedia playback software, the ET16S-G showcases its ability to hardware decode up to four channels of 8K60fps high-definition video content simultaneously, giving full play to the decoding and rendering capabilities of all available GPUs. Furthermore, it offers a range of functionalities, including multi-channel audio and video playback and processing, visual media management and program arrangement, as well as output partitioning and reorganization, enabling seamless control and creative display in mosaic configurations using multiple graphics cards.

With all these advanced features, the ET16S-G is well-suited for various fixed installation scenarios requiring exceptional resolution and powerful playback control, such as large-scale outdoor advertising displays, naked-eye 3D, immersive experiences, data centers, and exhibition showcases.

• Chassis: 4U
• Memory Size: 128G (DDR4)
• CPU: Dual Intel Xeon Gold Processor
• Storage: 1TB M.2 SSD (System Driver), 960GB U.2 SSD (Storage Driver)
• Graphics Card Model: 3× HPG4000, 1× MPGT400, 1× Sync Card
• Loading Capacity: 12× 4096×2160@60Hz
• Decoding Capacity: 3 layers of 8K@60 or 16 layers of 4K@60
• Program Quantity: Unlimited
• Layer Quantity: 12 layers (24 layers with 2 graphics cards, 36 layers with 3 graphics cards, 48 layers with 4 graphics cards) and 1 audio layer, with supported for expandability
• EDID Lock: ✓
• Cascading: ✓
• Frame Synchronization Splicing: ✓
• Dual-machine Backup: ✓
• iPad Control: ✓
• Protocol Control: ✓
• Operation System: Windows 10 Enterprise LTSC
• Software: Kompass FX3 (Dongle Included)
• Media Type: Video, audio, picture, subtitle, PPT, web page, NDI, streaming media, collection playback, capture card, digital clock, sequence frame
