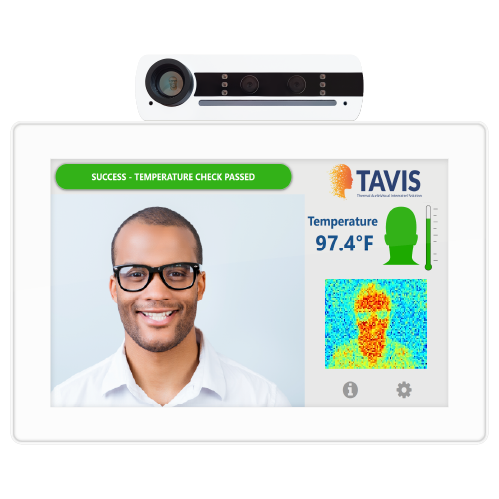

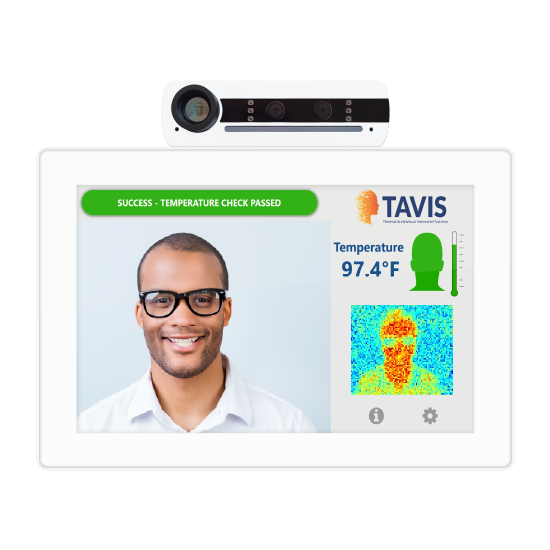

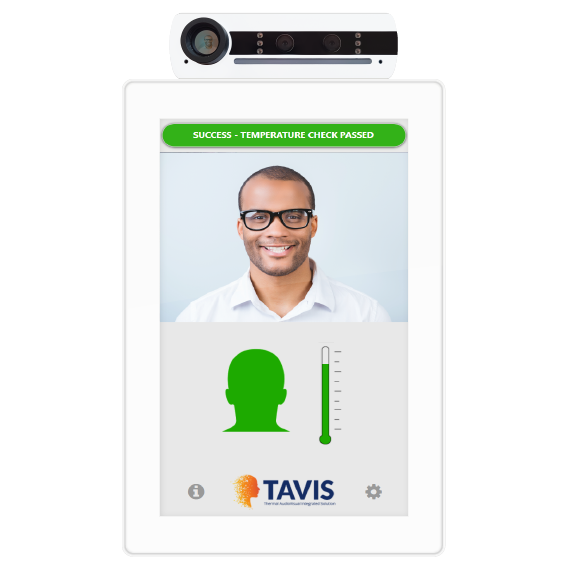

Aurora - TAVIS TAV-10W - 10.1'' - Temperature Sensing Tablet

The TAV-10 is a 10.1″ next generation infrared temperature check tablet. To ensure that people entering a location are not running a high temperature, the TAV-10 can provide audible, visual, email, and other electronic alerts when a person is running a high temperature.  Scan results take less 1 second, and users can be scanned from up to 5ft (1.5 meters) away.

Built from the ground up with the latest technology, the system uses an advanced algorithm for detecting and calculating heat signatures by detecting the canthus of the human eye.  A new precision thermal sensor with 5 times the resolution of previous solutions measures with a tolerance of +/- 0.3 degrees Celsius (+/- 0.5 degrees Fahrenheit).

TAVIS tablets are available in black or white.  Optional mounting solutions allow for desktop, wall, or freestanding pole mounting.  TAVIS Central enterprise software is available for monitoring many TAVIS tablets across a facility or campus, all from a central location..

Why a temperature sensor?

  • Provides the first layer of screening protection
  • More hygienic with touchless infrared technology
  • Multiple devices can be monitored by a single user

Advanced Features

  • Can be operated independently or networked to enable remote monitoring and other advanced features
  • Photo & thermal result email alerts
  • 2 person forehead scanning
  • Digital signage capabilities
  • QR code scanning
  • Mask detection and enforcement
  • Gesture detection for hands-free questionnaire responses
  • Configurable min/max temperature thresholds, mask enforcement, questionnaire, alerts, digital signage, and more
  • ReAX control engine for automation & integration with third-party devices and access systems
  • Streaming camera feed for security and remote viewing

NOTE: TAVIS is FDA and NDAA compliant.

Panel Information

  • Resolution: 1280 x 800
  • Brightness: 350 cd/m²
  • Contrast ratio: 800:1
  • Aspect Ratio: 16:10
  • Active Display Area: 136.8mm x 219 mm
  • Viewing angle: H:170° / V:170°
  • Touch Technology: 10 point capacitive touch (reflective glass)

Hardware & OS

  • CPU: RK3399 Cortex Six core Processor 1.8GHz/1.4GHz
  • RAM: 4GB DDR3
  • ROM: 32GB eMMC Flash
  • OS: Android 9 or Linux Debian 9 (Coming Q1)

Video/Audio Output

  • Auxiliary video: HDMI output for remote monitoring of results
  • Speaker: 2W x 2


  • Bluetooth: EDR 4.0
  • WiFi: 802.11 b/g/n 2.4GHz and 5GHz
  • Ethernet: 10/100/1000 LAN

General Information

  • Color: Black or White

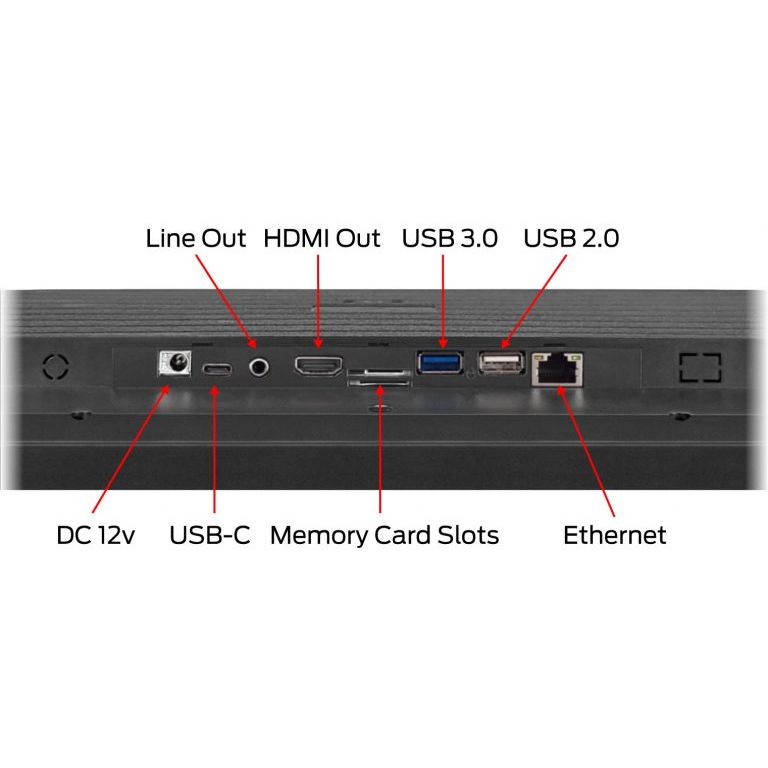

  • I/O: 12v DC Input, USB Type C, 3.5mm Audio Line L/R Out, HDMI 2.0 Output, SD Card Slot, SIM Card Slot (4G Option), USB 3.0, USB 2.0, 1G LAN PoE
  • AV Capablllty: Front Facing Binocular Camera 2 MP fixed focus
  • Included in Box: Tablet, Power Adapter, Power cable
  • Sensors: G-sensor
  • Consumption: 11W
  • Power Input: 12V 2A or PoE
  • Operating Environment - Temperature: Operating: 32°F to 100'F (0°C to 40°C); Storage: -4° F to 122°F (-20'C to 50°C)
  • Operating Environment - Humidity: Operating: 20%-80%; Storage· 10%-95%
  • Certification: CE, FCC, ROHS
  • Language: Multi language
  • VESA: VESA 75

Infrared Temperature Sensor

  • Size: 125mm x 36.44mm x 27.20mm (39.67mm deep including lens)
  • Temperature check distance: 0.3m-1.5m
  • Temperature check range: 30°C to 45°C
  • Temperature check error: ±0.5°F@1 Hz


  • Size (WxDxH): 258mm x 27mm x 175mm
  • Product Weight: 700g
  • Box Size: 378mm x 62mm x 278mm
More Information
Condition New
Brand Aurora
