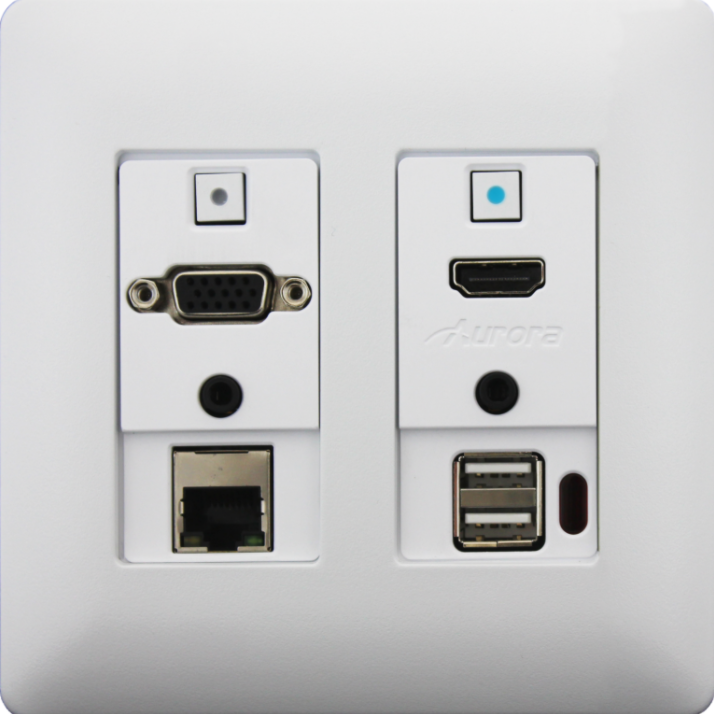

The DXW-2EUH is a 2 gang multi-input Decora™ style wall plate with HDBaseT CAT extension and host side USB extension. Its ability to convert VGA (YPbPr, S-Video, Video) with audio to HDMI locally and transmit the signal up to 600ft sets this unit apart from the competition. The sources are selectable with the buttons on the wall plate, DXB-8 1 gang 8 button panel, or remotely via RS-232 commands sent through the matching receiver device (DXE-CAT-RX, DXM Matrixes, etc).

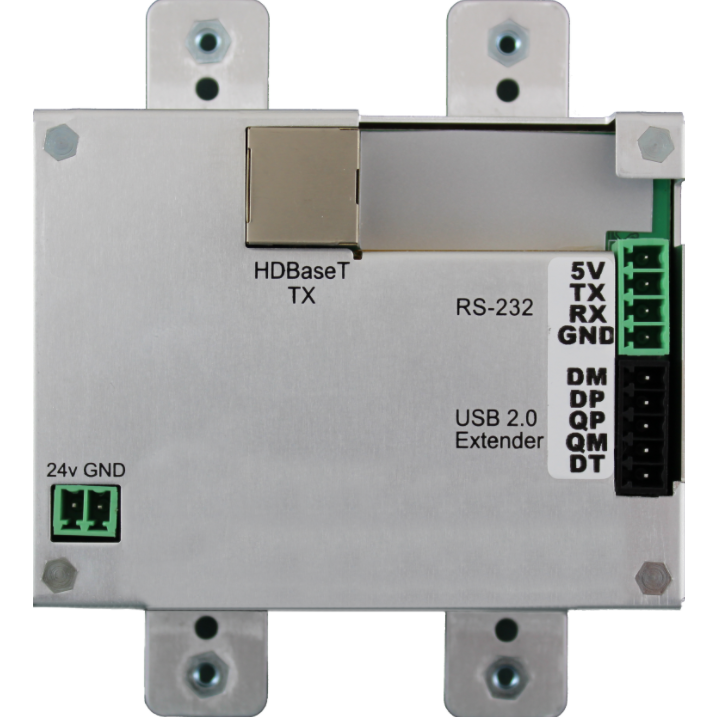

In addition, the DXW-2EUH has a LAN port for connection to the network without requiring a separate wall plate. The units top USB port is to connect to a PC (Host) while the bottom is unused as there can only be one Host connected. The top USB is capable of transmitting at 480Mbps up to 150ft independently to a different location. The DXW-2EUH can be remotely powered by the receiver device and also has the ability to receive IR signals via the sensor window on the front of the unit and pass them to the receiver unit for remote control of IR controllable devices. Overall, the DXW-2EUH saves money and simplifies an installation by combining the functionality of a switcher, converter, and extender into one neat package.
