Eurotruss | FD33

Eurotruss | FD33

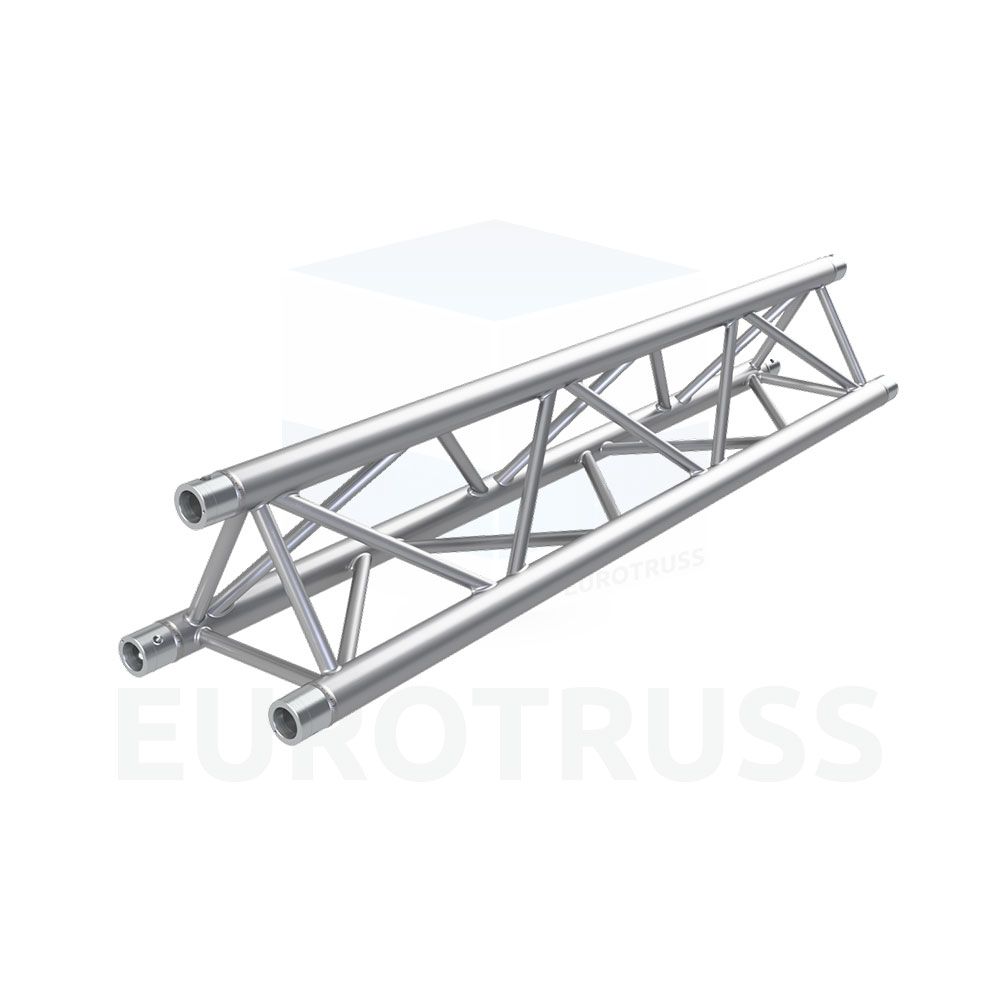

FD33, the Triangular Truss with equilateral profile geometry for larger loads. The FD33 straight elements lend themselves perfectly for making bending stress resistant spans up to 12 meters (39 feet).

Designed for high frequency usage or installations,which demands higher loading.

Made with the fast CS1 connection system.

Features

• TüV approved
• Also available in any non-standard length and shape
• Tolerance free conical connector system

• Product: Eurotruss
• Connection Type: CS1-CON
• Height: 258 mm (10.16 in)
• Width: 290 mm (11.42 in)
• Main Tube: 50 x 2 mm (1.97 x 0.08 in)
• Braces: 20 x 2 mm (0.79 x 0.08 in)
• Weight: ~4.5 kg/m (~3 lbs/ft)
• Pin Position: Diagonal
• Material: EN AW-6082 T6
