Martin Exterior Linear Pro Graze QUAD lights are flexible, compact, LED-based architectural fixtures featuring high output with color boost technology and discreet yet robust housings. Delivering uniform light distribution of 15 degrees, they are perfect for highlighting textured surfaces, walls, facades, ceilings and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor installations.

Graze QUAD models feature homogenized color mixing with 8 LEDs/ft and an integrated color boosting feature for full-powered illumination of a single color or mixed colors. Each unit is factory calibrated for superior color consistency, making them up to three times brighter than comparable fixtures, yet boasting lower total power consumption. Logic RGB control of the RGBW engine is also included where white is automatically calculated. Optional micro lens film can be added for a wide range of additional beam configurations.

Packed with intelligent features, these fixtures offer a dedicated color temperature control channel, which accurately follows the black body curve, empowering lighting designers to set their favorite default color temperature. Integrated segment control allows the fixtures to be controlled down to 6-inch (15 cm) segments, creating more organic and subtle color transitions.

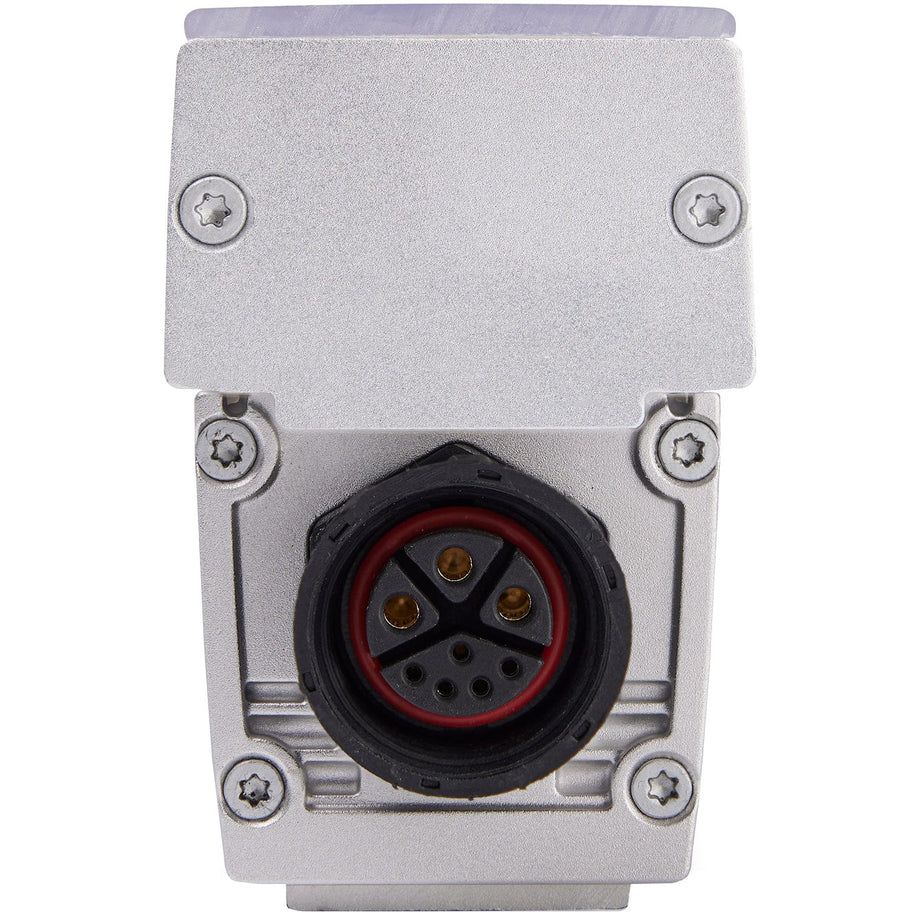

With a high focus on sustainability, these lights can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy and a smart mounting plate design offers a variety of standard or custom bracket solutions.

The slim design of these lights makes them easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.

Physical

• Width: 40 mm (1.57 inch)

• Height: 68 mm (2.67 inch)

• Length - 1 ft Version: 312 mm (1.02 ft)

• Length - 4 ft Version: 1227 mm (4.02 ft)

• Weight - 1 ft Version: 0.85 kg (1.9 lbs)

• Weight - 4 ft Version: 2.8 kg (6.2 lbs)

Dynamic Effects

• Intensity: 0 - 100%

• Color mixing: RGBW

• Color temperature control: CCT: 1800K – 12000K (default 4000K)

• Segment Control: 0.5 ft, 1 ft or full 4 ft fixture control

Control and Programming

• Control systems: DMX, RDM

• User interface: Magnetic button to call up fixture status and test fixture

• Stand-alone control: Up to 20 scenes with individual fade/hold times

• Control resolution: 8-bit DMX individual color control

• Dimmer Resolution: 16-bit DMX control of intensity

• DMX compliance: USITT DMX512/1990

• RDM compliance: ANSI/ESTA E1.20

• DMX channels 4ft: 6/4/3/12/24 (standard/RAW/1 seg/4 seg/8 seg)

• DMX channels 1ft: 6/4/3/6 (standard/RAW/1 seg/2 seg)

Optics

• Light source: QUAD color LED (8 LEDs per foot)

• Minimum LED lifetime: 50,000 hours (to >70% luminous output)

• Binning: Tight color and flux binning

• Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)

• Beam angle: 15°, 15° x 30°, 15° x 60°

• (Asymmetric beam angles available as accessory micro-lens films)

Photometric Data

• CRI (Color Rendering Index): >70

• CCT: 1800K – 11000K (default 4000K)

• Luminous output:

  • 1 ft at 12W:

    • FULL: 700 lumens

    • RED: 260 lumens

    • GREEN: 570 lumens

    • BLUE: 120 lumens

  • 4 ft at 48W:

    • FULL: 2980 lumens

    • RED: 1210 lumens

    • GREEN: 2370 lumens

    • BLUE: 530 lumens

Construction

• Housing: Aluminum

• Finish: Clear anodized (standard) or optional colors on request

• Front: Clear polycarbonate

• Protection rating: IP66

• IK rating: IK08

• Effective Projected Area (EPA): 0.04 m² per ft

• Corrosion resistance: C5 - very high corrosivity / Durability Range: High (ISO 12944-6)

• Vibration resistance:

  • 1.0g, Sinusoidal (IEC 60068-2-6)

  • 0.7g RMS Random (IEC 60068-2-64)

  • 3.0g (ANSI C136-31)

Installation

• Orientation: Any

• Minimum distance to illuminated surfaces: 0.1 m / 0.3 ft
