VMB - TE-076PRO

VMB - TE-076PRO

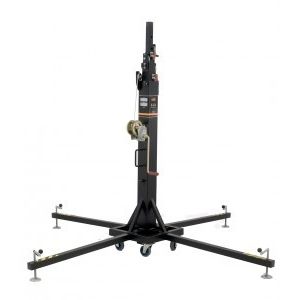

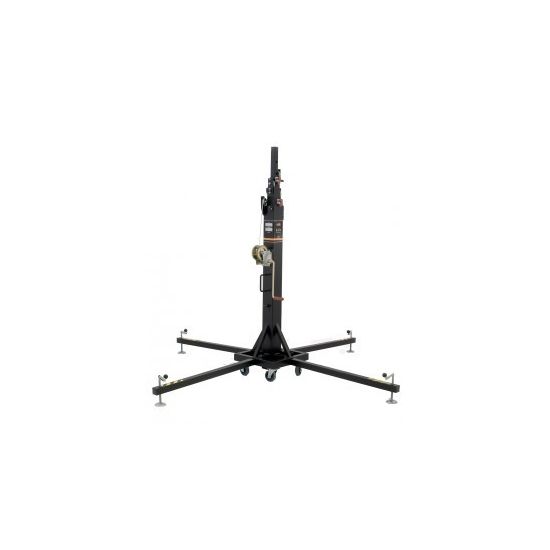

The TE-076 lifting tower consists of five steel profiles with antirust protection, painted with cured polyester dust cover and is capable of lifting 220kg to 6.5m. It has four legs with stabilizers, to level the lifter and to be able to regulate the height in case of unevenness of the floor. In case you need to transport the lifter horizontally, a RH-1 transport accessory can be assembled.

Safety is the most important element for VMB, so the lifting tower incorporates our patented automatic lock ALS (Auto-Lock System), which blocks the tower automatically while rising, the load will never fall in the unlikely event of the cable breaking. A wide range of accessories are available

Specifications:

• Max. height: 6.5m (21.3′)
• Max. Load: 220Kg (485 lb)
• Safety: ALS (Automatic Lock System)
• Work surface: 1.85 x 1.85m (6.07 x 6.07′)
• Folded height: 1.83m (6′)
• Winch: 600Kg
• Adaptor: 35mm (PSU-06 / PSA-01)
• Weight: 95Kg (209lb)
