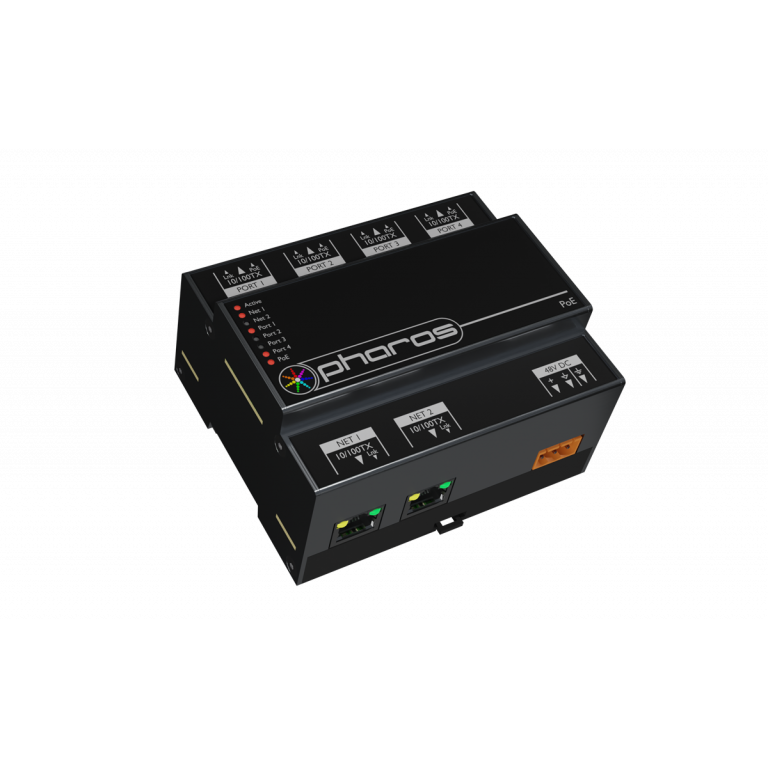

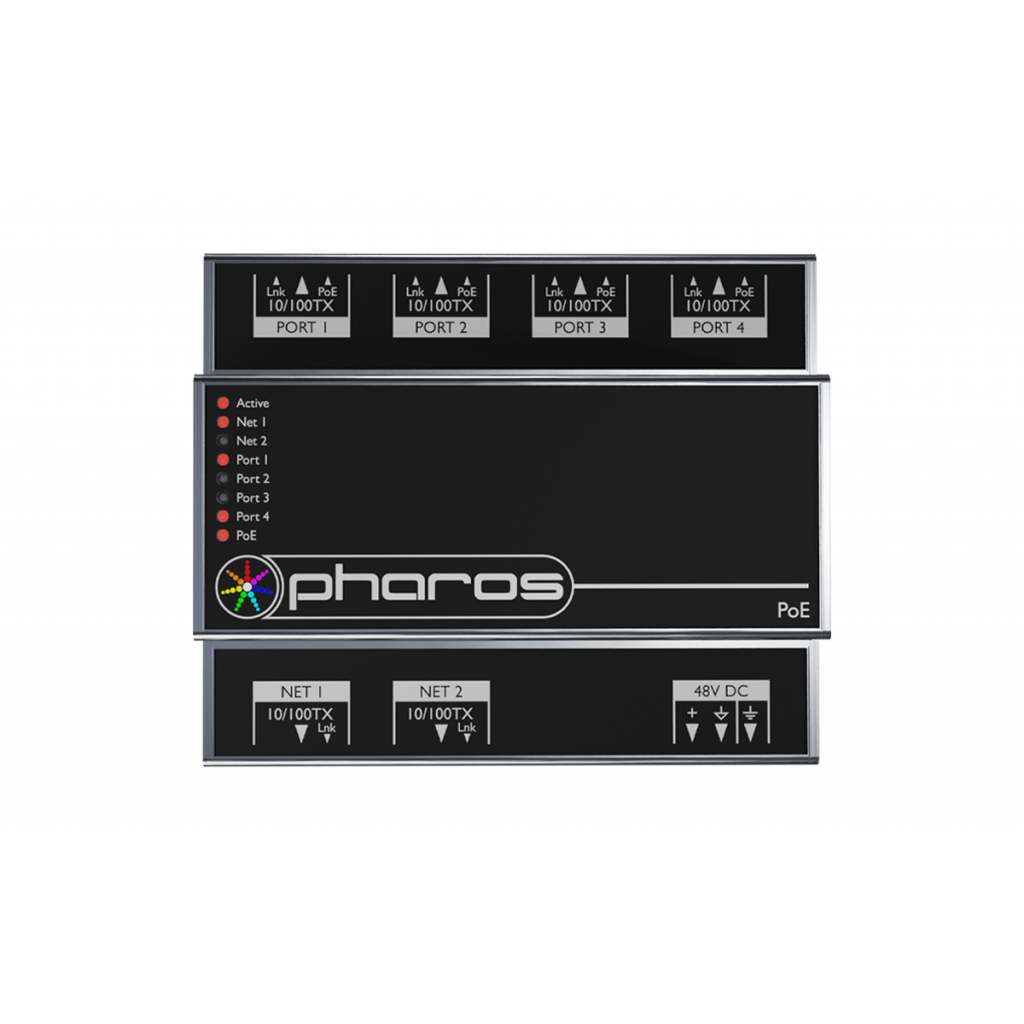

Pharos - POE - DIN-rail Ethernet Switch

Pharos - POE - DIN-rail Ethernet Switch

The Pharos POE provides a simple power and networking solution for four Power-over-Ethernet devices with two separate Ethernet uplink ports. It is perfect for connecting power and data between Pharos Controllers and Pharos Remote Devices.

The unmanaged switch has a total of six 10/100Base-TX Ethernet ports with standard RJ45 sockets. Four are enabled for Power-over-Ethernet while the remainder allow for connection to a computer, network or other non-Power-over-Ethernet powered device.

The POE is provided in a rugged DIN rail enclosure with install-friendly connectors.

• Certifications: CE compliant, ETL/cETL listed
• Power: 48V DC on install-friendly 0.200″ (5.08mm) 3-pin plug in rising clamp connector (included)
• Consumption: Dependent on PoE port loading
• Temperature: 0°C to 50°C (32°F to 122°F)
• Physical: 6 unit wide DIN rail mounting enclosure (DIN43880 / EN60715 (35/7.5 rail))
• Weight: 0.5 kg
• Warranty: 5 years

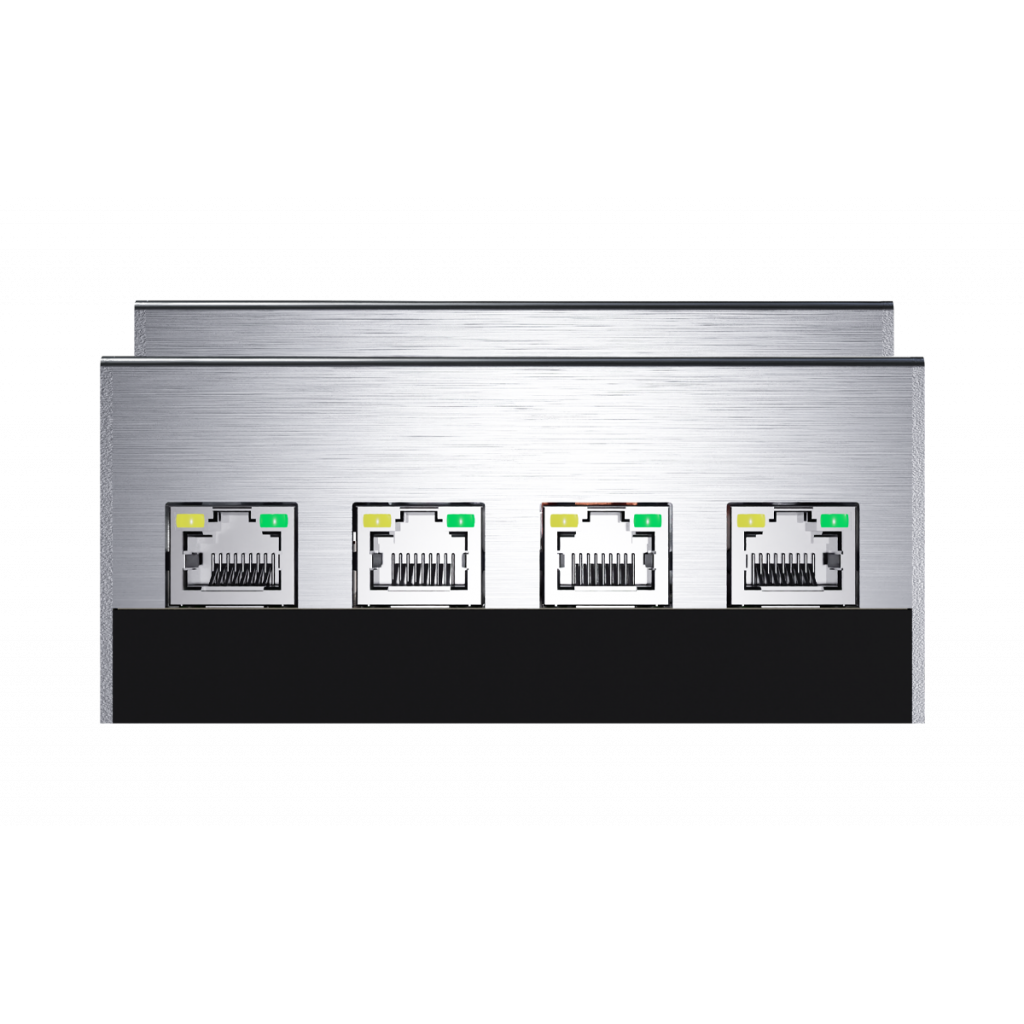

• Interfaces: PoE Four RJ45 sockets for 10/100Base-TX Ethernet with Power-over-Ethernet Supports IEEE 802.3af Class 1, 2, and 3 and IEEE 802.3at Class 4 (Type 2) devices
• Ethernet: Two RJ45 sockets for 10/100Base-TX Ethernet
