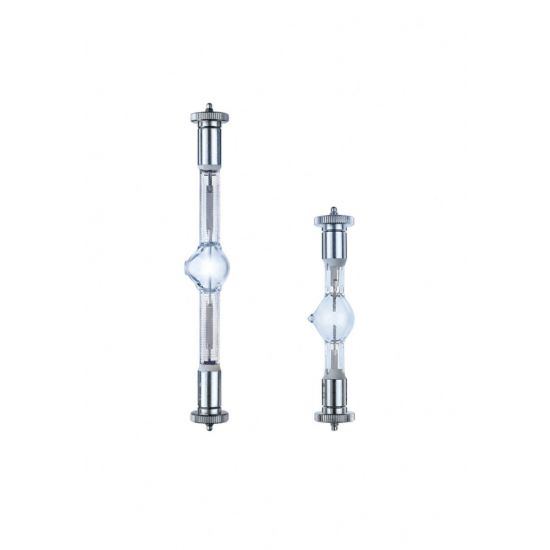

Osram - Baby SharXS HTI 575 W/D5/56

Osram - Baby SharXS HTI 575 W/D5/56

Product family features

• High efficiency thanks to short-arc technology
• High thermal load capacity thanks to eXtreme Seal (XS) technology - enables high pinch temperatures of up to 450 °C
• Hot restart capability
• Compact modular design - the same dimensions for all wattages within each SharXS family
• Pre-focus base for accurate lamp installation

Product family benefits

• Short 5 mm arc for high efficiency
• Overall length of 93 mm
• Areas of application
• Concert and effect lighting

Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, Baby SharXS HTI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Electrical data

• Nominal wattage: 575.00 W
• Nominal voltage: 93.0 V
• Lamp voltage: 95 V
• Ignition voltage: 4.5 / 20 kVp
• Nominal current: 7.20 A
• Lamp current: 6.4 A

Photometrical data

• Nominal luminous flux: 43000 lm
• Luminance: 50000 cd/cm²
• Color temperature: 5600 K
• Color rendering index Ra: 85
• Luminous efficacy: 75 lm/W

Dimensions & weight

• Diameter: 16.0 mm
• Length: 93.0 mm
• Light center length (LCL): 35.0 mm

Temperatures & operating conditions

• Maximum permitted pinch temperature: 450 °C

Lifespan

• Lifespan: 500 h

Additional product data

• Base (standard designation): SFc11-4

Capabilities

• Burning position: Any
