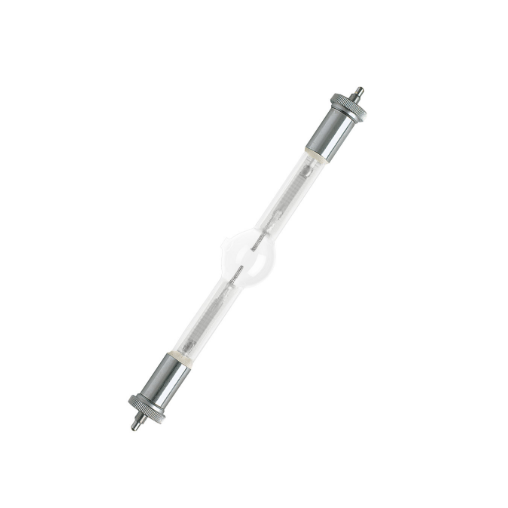

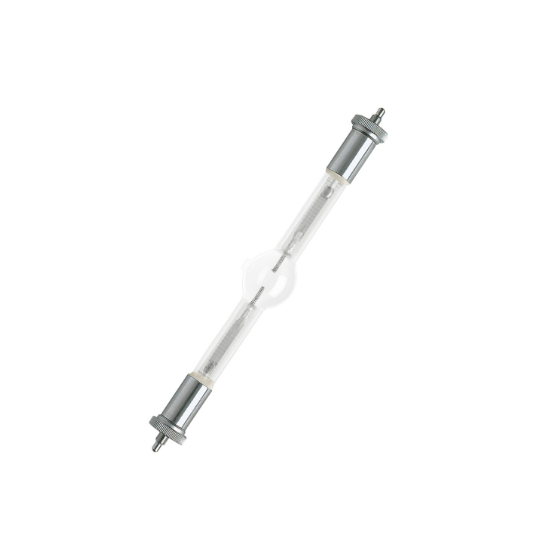

Osram - HMI - 1200W/DXS
Osram - HMI - 1200W/DXS

Osram - HMI - 1200W/DXS

€86.09 Excl. Tax
Delivery:
Ca. 8 working days*
Art. code
OS-84.3140

Osram - HMI - 1200W/DXS

Product family features

  • Color temperature: approx. 6,000 K (Daylight)
  • High color rendering index: Ra > 90
  • Very bright with luminous flux up to 2.3 million lumen
  • Very high luminous efficacy up to 100 lm/W
  • Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
  • Hot restart capability

Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, HMI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Electrical data

  • Nominal wattage: 1200.00 W
  • Lamp wattage: 1200 W
  • Lamp voltage: 100 V
  • Nominal current: 13.8 A
  • Lamp current: 13.8 A

Photometrical data

  • Color temperature: 6000 K
  • Color rendering index Ra: › 90

Dimensions & weight

  • Diameter: 27.0 mm
  • Length: 220.0 mm
  • Mounting length: 180.0 mm
  • Length with base excl. base pins/connection: 180.00 mm

Lifespan

  • Lifespan: 1000 h

Additional product data

  • Base (standard designation): SFc15.5

Capabilities

  • Burning position: Any
More Information
Condition New
Brand Osram
