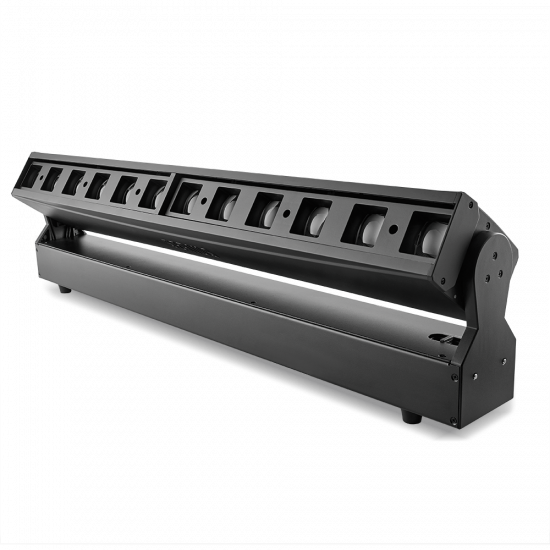

CLF Serius is a moving LED bar with a length of 1 meter. It comes with 12 x 30W high power RGBW LEDs which can be controlled individually. The zoom range of the Serius is divided in two segments which can be moved independently from 3,5° to 38°.

The shape of the CLF Serius makes sure that the LEDs will have even spacing when multiple fixtures are combined. This creates a seamless light curtain. The bar can be tilted precisely and smoothly by 220°.

Features:

• Smooth RGBW color mixing
• 3.5° – 38° Zoom (2 segments)
• Battery backup for menu settings
• 12 individually controllabe LEDs
• 220° Tilt angle

Power

• Input voltage: 100 – 240 VAC, 50/60HZ
• Standby power: 31W
• Total power consumption: 450W
• Typical current: 1.9A
• Power plug type: Seetronic Powercon TRUE

Configuration

• LED color: RGBW
• Quantity of LED: 12
• Dimmer resolution: 16 bit

Optical

• Beam angle: 3.5° – 38°
• Zoom range: 1:11

Photometric

• Output @5M: 275225 Lux @ 3.5°
• Output @10M: 11009 Lux @ 3.5°

Effects

• Dimmer: 0-100%
• Tilt: 220°
• Shutter: 0.5 – 9 times / second, random
• Zoom: 1:11
• Color: RGBW

Hardware

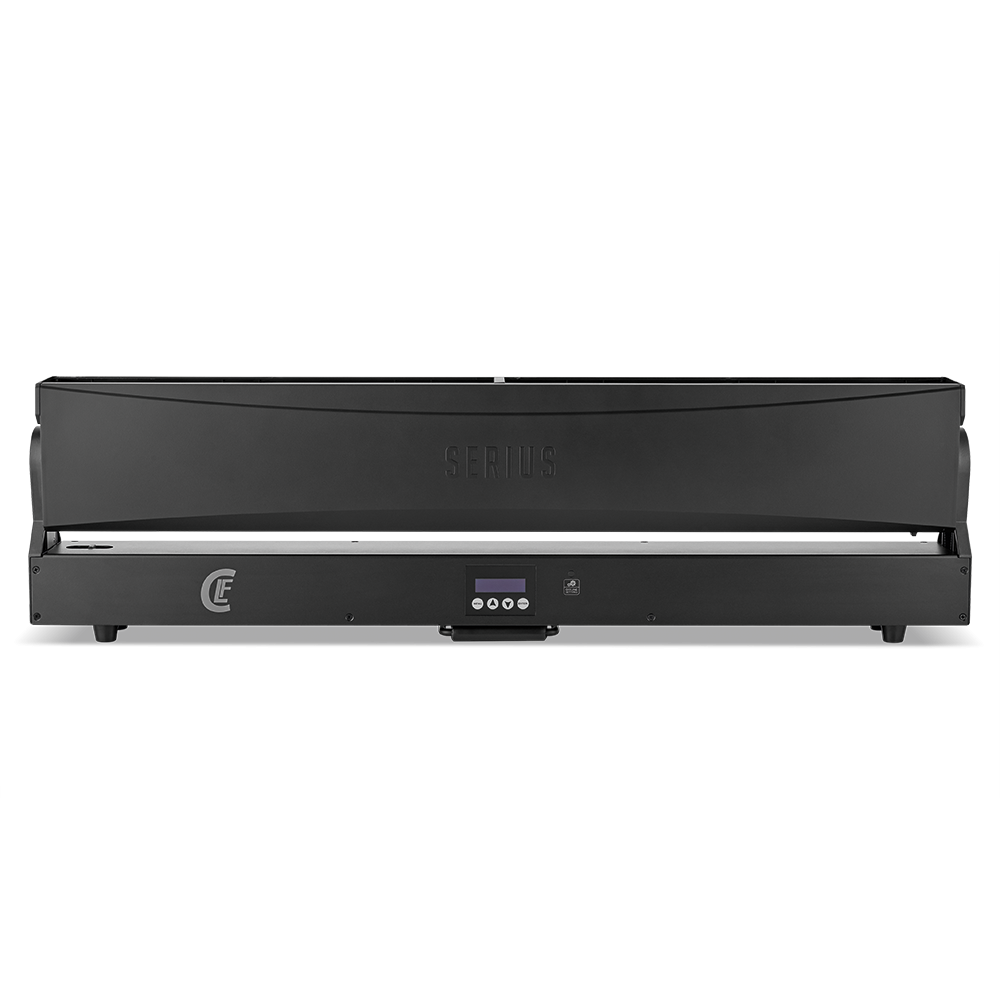

• Interface: OLED display with backup battery
• Software upload method: Via DMX input

Heat management

• Cooling type: Regulated Fans
• Max. ambient temp.: Ta max=40°C
• Min. ambient temp.: Ta min=-0°C
• Max. surface temp.: 65°

Control

• Control protocols: Art-Net, DMX512, RDM
• DMX channels: 14 & 57
• RDM: Yes
• RDM Compliance: USITT DMX512-A
• DMX input connection: 3-PIN and 5-PIN XLR

Installation

• IP rating: IP22
• Orientation: Any

Housing

• Safety attachement point: Yes
• Lock: Tilt lock

Physical

• Net product weight: 17KG
• Length: 1000mm
• Depth: 113mm
• Height: 278mm

Accessories

• Included items: Manual, Power cable, 2 x Omega bracket

Approvals

• Approved certifications: CE and RoHS

Information

• EAN code: 8719189163902
