TeqSas - LAP-TEQ Plus Inclinometer Set

€2,963.70 Excl. Tax

Availability:
Out of stock

Art. code

OV-31.0020

FREE SHIPPING

Within Benelux (from €750)

Description

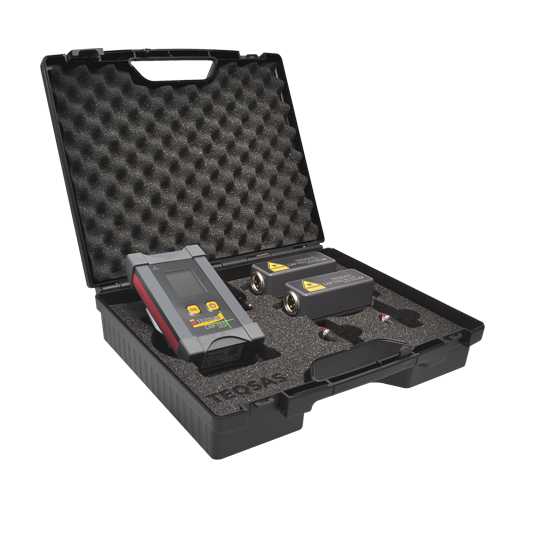

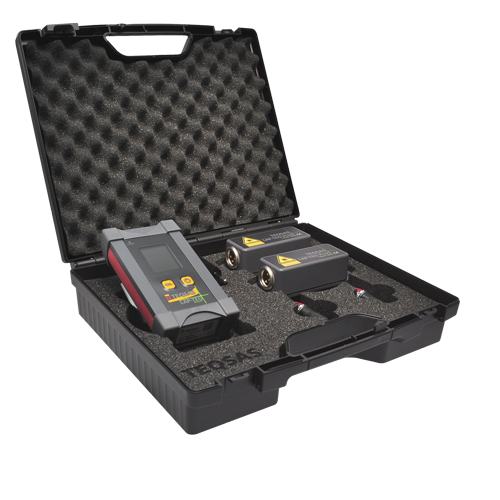

TeqSas - LAP-TEQ Plus Inclinometer Set

The LAP-TEQ PLUS inclinometer (protractor) is used for precise positioning of line arrays or groups of multiple loudspeakers.
It consists of two components: The sensor module (measuring unit) and the display module (reading unit)

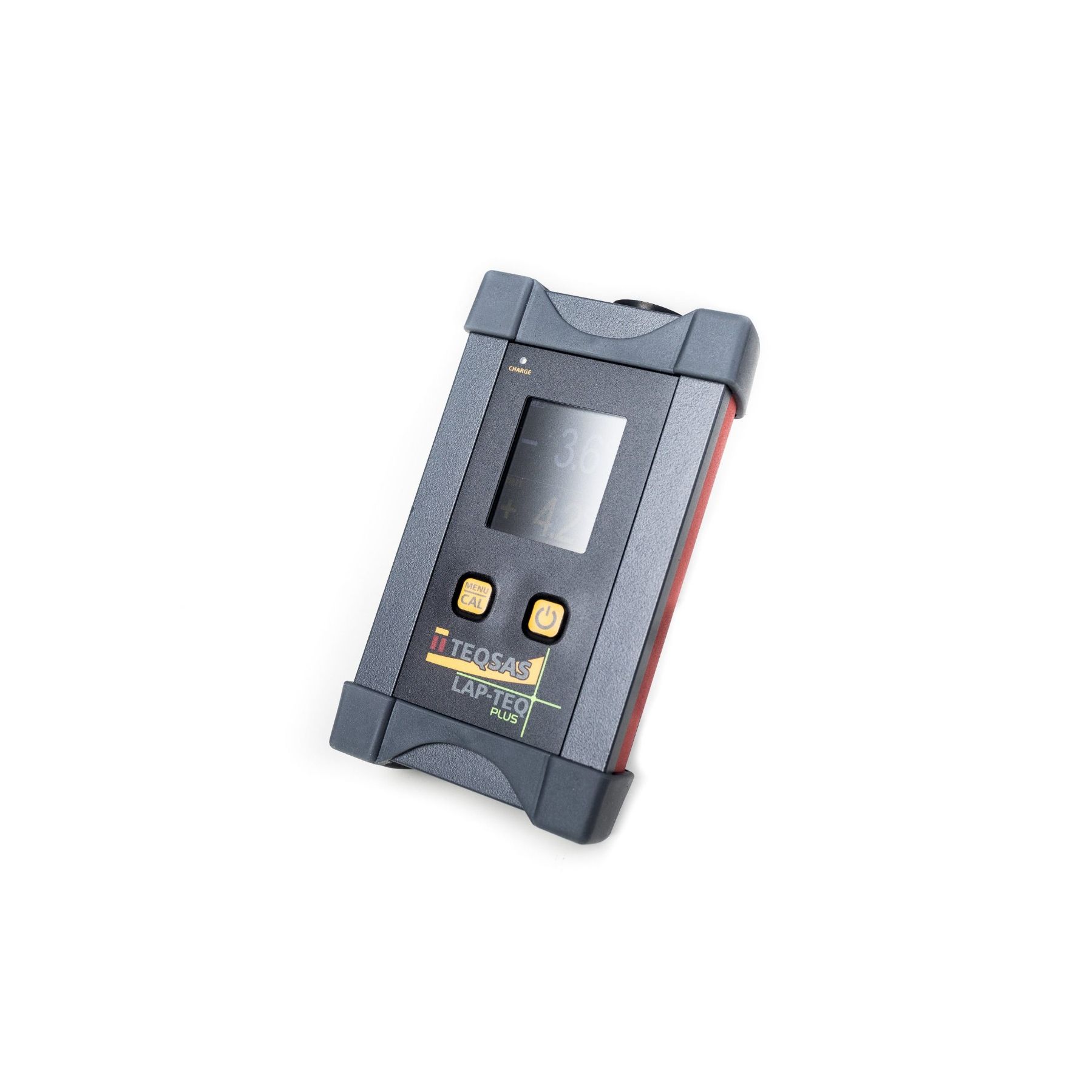

What does the LAP-TEQ PLUS DISPLAY actually do?

The LAP-TEQ PLUS DISPLAY shows the sensor data of the respective LAP-TEQ PLUS sensors.

In the case of the LAP-TEQ PLUS INCLINOMETER, the display shows the alignment of the LAP-TEQ PLUS INCLINOMETER to the exact degree according to the current vertical angle.

The LAP-TEQ PLUS DISPLAY has a 1.8-inch color TFT and two buttons for operation and menu navigation. Power is supplied via the built-in rechargeable battery. This is charged via the USB port.

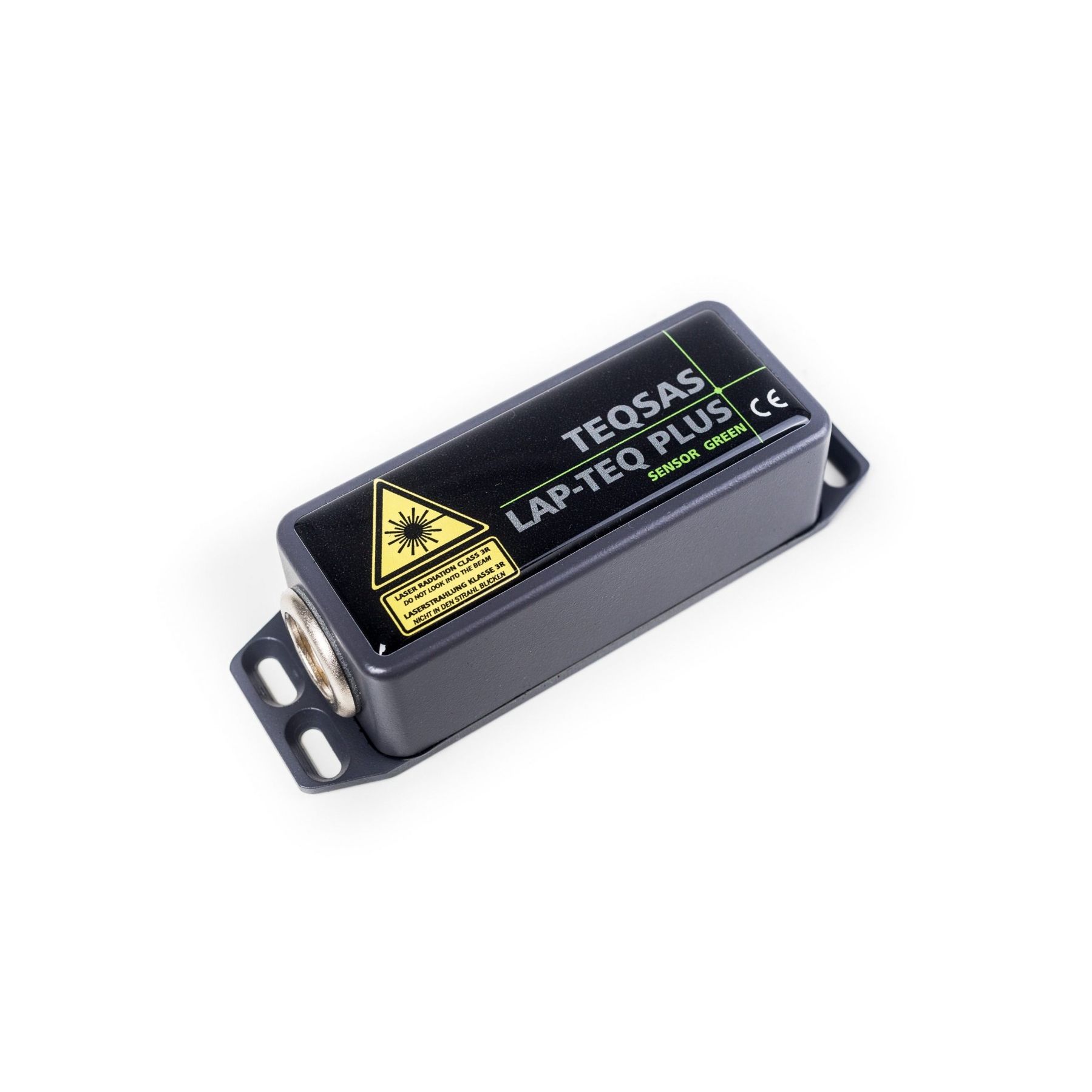

What does the LAP-TEQ PLUS INCLINOMETER do?

The LAP-TEQ PLUS INCLINOMETER is an angle sensor in a small and lightweight housing. The sensor is intended for mounting on flying frames or bumpers of loudspeaker systems (line arrays) and measures the vertical alignment angle there.

The sensor has a green laser in cross optics which is aligned in the radiation direction of the loudspeaker. This makes it possible to visually identify where, for example, the top element of a line array loudspeaker system hits in terms of acoustics.

Another advantage of the cross-look laser is that even with folds in curtains or between rows of chairs, it can still be seen through the horizontal and vertical lines.

Specifications
