SLX-D® Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with
streamlined network-ready setup and rechargeability options in a suite of versatile wireless system
configurations. Featuring industry-leading digital wireless technology and design in a convenient full-rack
quad configuration, the SLXD4QDAN+ efficiently saves space and accessories, and easily scales to match
channel requirements with Dante Audio connectivity.

• Four channels in one rack space
• Dante Audio Networking: Carried on a single Ethernet cable
• Wide 138 MHz tuning range
• 32 available channels per frequency band (region dependent)
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Audio Summing: Matches receiver output to available mixer channels (4, 3, 2, or 1)
• RF Cascade: Creates an 8-channel system by linking two SLXD4Q+ units, no additional accessories required
• Bias Voltage: Power supply management
• Digital predictive switching diversity
• Easy pairing: Transmitters and receivers can be paired via IR scan and sync

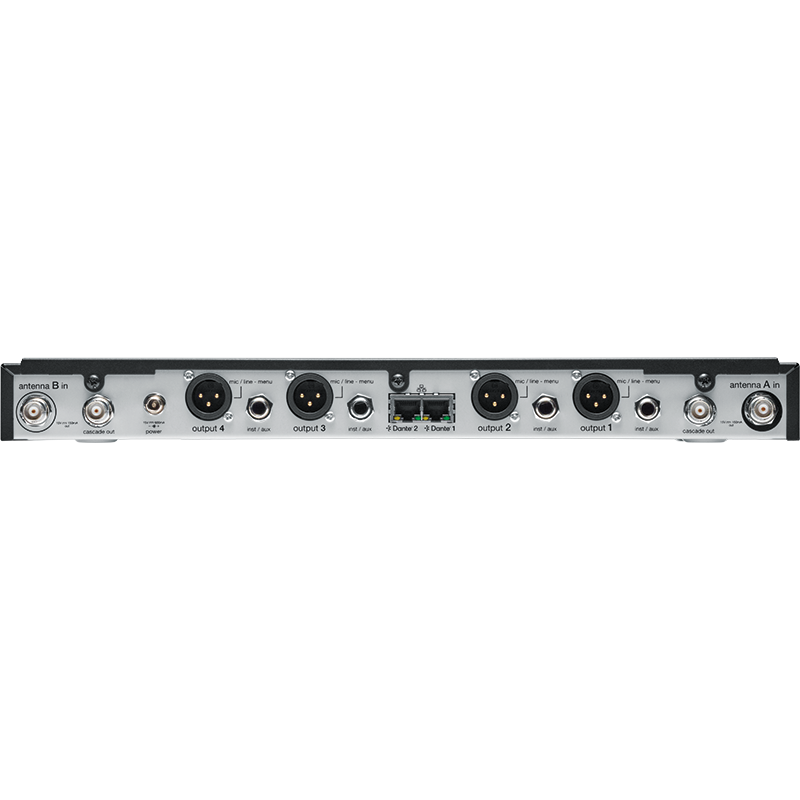

• Outputs: 4 XLR, 4 1/4", and 2 local ethernet connections
• Compatible with Shure Wireless Workbench® control software
• Rugged metal construction

RF

• RF Carrier Frequency Range: 470–937.5 MHz (Varies by Region. See Frequency Range and Output Power Table.)

• Working Range: 100 m (328 ft)

  Note: Actual range depends on RF signal absorption, reflection, and interference.

• RF Tuning Step Size:

  • JB Band: 125 kHz

  • All Other Bands: 25 kHz (Varies by region.)

• Image Rejection: >85 dB (typical)

• RF Sensitivity: −97 dBm at 10-5 BER

Audio

• Latency: 3.2 ms

• Audio Frequency Response: 20 Hz–20 kHz (+1, −2 dB)

• Audio Dynamic Range (A-weighted, 20 Hz–20 kHz, typical): 118 dB @ 1% THD

• Total Harmonic Distortion: <0.02%

• System Audio Polarity:

  • XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.

  • TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.

Temperature Range

• Operating Temperature Range: 0 °F to 122 °F (−18 °C to 50 °C)

• Storage Temperature Range: −20 °F to 165 °F (−29 °C to 74 °C)

  Note: Battery characteristics may limit this range.

Note: This radio equipment is intended for use in musical professional entertainment and similar applications. This radio apparatus may be capable of operating on some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless microphone products.

Dimensions

• H × W × D: 1.65 x 15.47 x 5.98 in. (42 x 393 x 152 mm)

Weight

• 1750 g (without antennas)

Housing

• Material: Galvanized Steel

Power Requirements

• Voltage: 15 VDC @ 1.03 A

RF Input

• Spurious Rejection: >75 dB (typical)

• Connector Type: BNC

• Impedance: 50 Ω

• Bias Voltage: 15 V DC, 150 mA maximum, per antenna (switchable on/off)

Audio Output

• Audio Frequency Response: 20 Hz – 20 kHz (+1, -2 dB)

• Gain Adjustment Range: –18 to +42 dB in 1 dB steps

• Configuration:

  • 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)

  • XLR: Balanced (1=ground, 2=audio +, 3=audio –)

• Impedance:

  • 1/4" (6.35 mm): 1.1 kΩ (550 Ω Unbalanced)

  • XLR (Line): 500 Ω (250 Ω Unbalanced)

  • XLR (Mic): 150 Ω

• Full Scale Output:

  • 1/4" (6.35 mm): +12 dBV Unbalanced (+18 dBV Balanced)

  • XLR (Line setting): +18 dBV

  • XLR (Mic setting): –12 dBV

• Mic/Line Switch: 30 dB pad

• Phantom Power Protection:

  • 1/4" (6.35 mm): Yes

  • XLR: Yes

Cascade Output

• Connector Type: BNC (for connection of one additional receiver in the same band)

• Configuration: Unbalanced

• Impedance: 50 Ω

• Insertion Gain: 0–2 dB (typical)

Networking

• Network Interface: 20 Hz – 20 kHz (+1, -2 dB)

• Network Addressing Capability: DHCP or Manual IP address

• Maximum Cable Length: 100 m (328 ft)
