Shure | MXW1/O - Bodypack Transceiver, omnidirectional
Shure | MXW1/O - Bodypack Transceiver, omnidirectional

Shure | MXW1/O - Bodypack Transceiver, omnidirectional

€710.00 Excl. Tax
Delivery:
Ca. 2 weeks*
Art. code
SU-37.1150

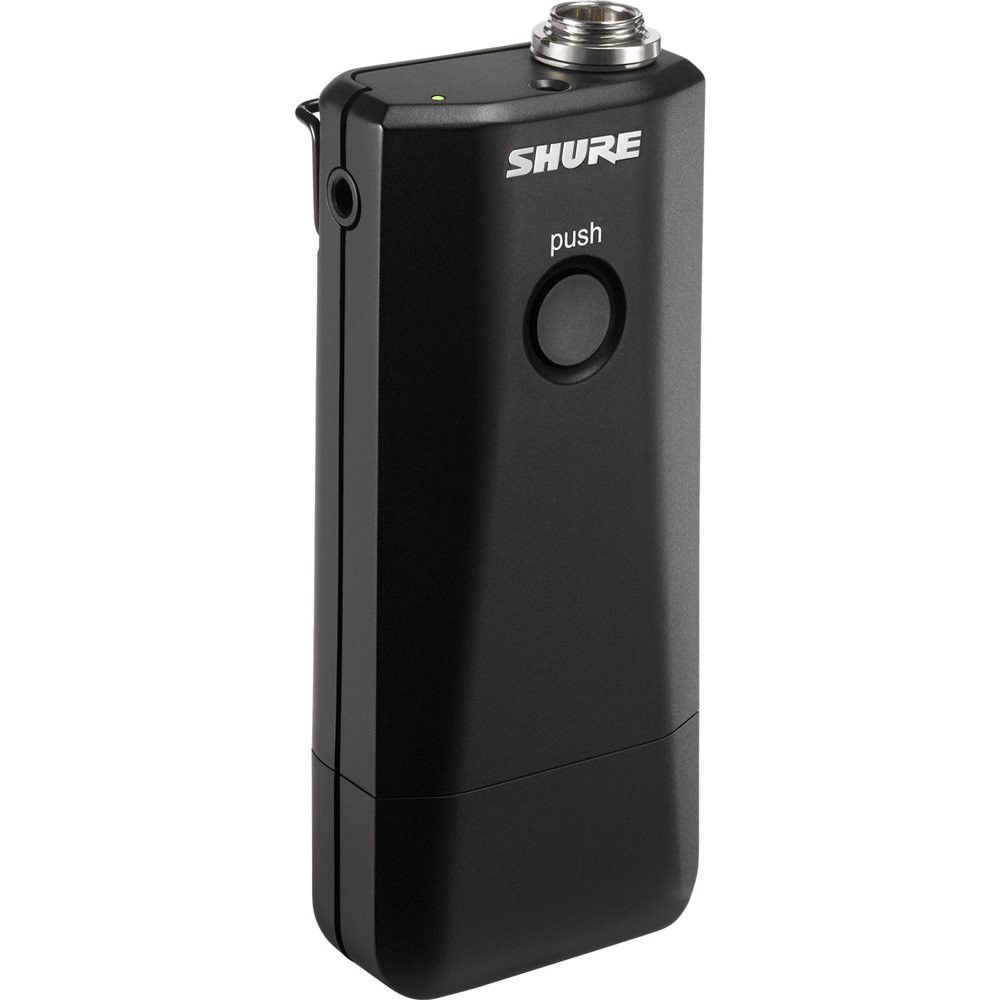

Shure - MXW1 - Bodypack Transceiver W/Built-IN OMNI MIC

The MXW1 is a hybrid bodypack transmitter compatible with Microflex Wireless systems. It offers both an integrated omnidirectional microphone and an input jack for connecting an ear-worn or lavalier style microphone. The integrated microphone is perfect for picking up speech while the bodypack is on a lanyard or tucked into a shirt pocket, and a belt clip is included for attachment to clothing. All Microflex Wireless transmitters deliver vivid lifelike sound, intelligent wireless performance, encrypted transmission, and advanced rechargeability for conferencing and presentation applications.

Features

  • Compact, low-profile design: Fits comfortably into a shirt pocket or attached to clothing
  • Integrated omnidirectional mic: Clearly captures full-range audio without connecting an external microphone
  • External microphone input: For connecting multiple styles of earworn or lavalier condenser microphones
  • Bi-directional wireless: Enables return channel audio and real-time remote control of all wireless microphone settings
  • Earphone output: Listen to audio from a return channel for translation, cueing, or program material
  • Programmable mute button: Customize local or remote muting behavior per application, with options including push-to-talk, push-to-mute, and external control
  • Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use
  • Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
  • Out-of-range alert: Emits beeping sound when range is exceeded
  • Wide frequency response: Captures full-range audio for clear voice transmission
  • Easy transmitter linking: Assign the microphone to an access point channel by simply docking it into a networked charging station and pressing “Link”
  • Encrypted wireless: AES 256-bit encryption for secure transmission
  • Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge fully in 2 hours, and allow remote monitoring over the network of remaining runtime and charge status in hours and minutes
  • USB charging: Connects to any standard USB power source for “always on” usage. Charge time using SBC-USB adapter: <3.5 hours while mic is in use
  • Gain Adjustment Range: -25 to +15 dB (in 1 dB steps)
  • Maximum Input Level (Mic gain @ -16 dB): −9 dBV
  • Headphone Output: 3.5 mm (1/8"), dual mono (will drive stereo phones)
  • Maximum Headphone Output Power (1kHz @ 1% distortion, peak power, @16Ω): 17.5 mW
  • Antenna Type: Internal, Spacial Diversity, Linear Polarization
  • Battery Type: Rechargeable Li-Ion
  • Battery Life: Up to 9 hours, Calculated with a new battery. Runtimes vary depending on battery health.
  • Charge Connector: USB 3.0 Type A
  • Housing: Molded Plastic
  • Recommended Storage Temperature Range: 0 °C (32 °F) to 25 °C (77 °F)
  • Microphone Connector: 4-Pin male mini connector (TA4M), See drawing for details
  • Input Impedance: (@ 1 kHz) >20 kΩ
  • Internal Microphone: Omnidirectional (20 Hz – 20 kHz)
  • Dimensions: 22 mm × 45 mm × 99 mm (0.9 in. × 1.8 in. × 3.9 in.) H × W × D
  • Weight: 85 g (3.0 oz.) with batteries, without microphone
More Information
Brand Shure
EAN 042406268608
