Shure | MXWAPT4-Z11 - 4-Kanal-Access-Point-Transceiver

Shure - MXWAPT4 - 4 Channel Access Point Transceiver

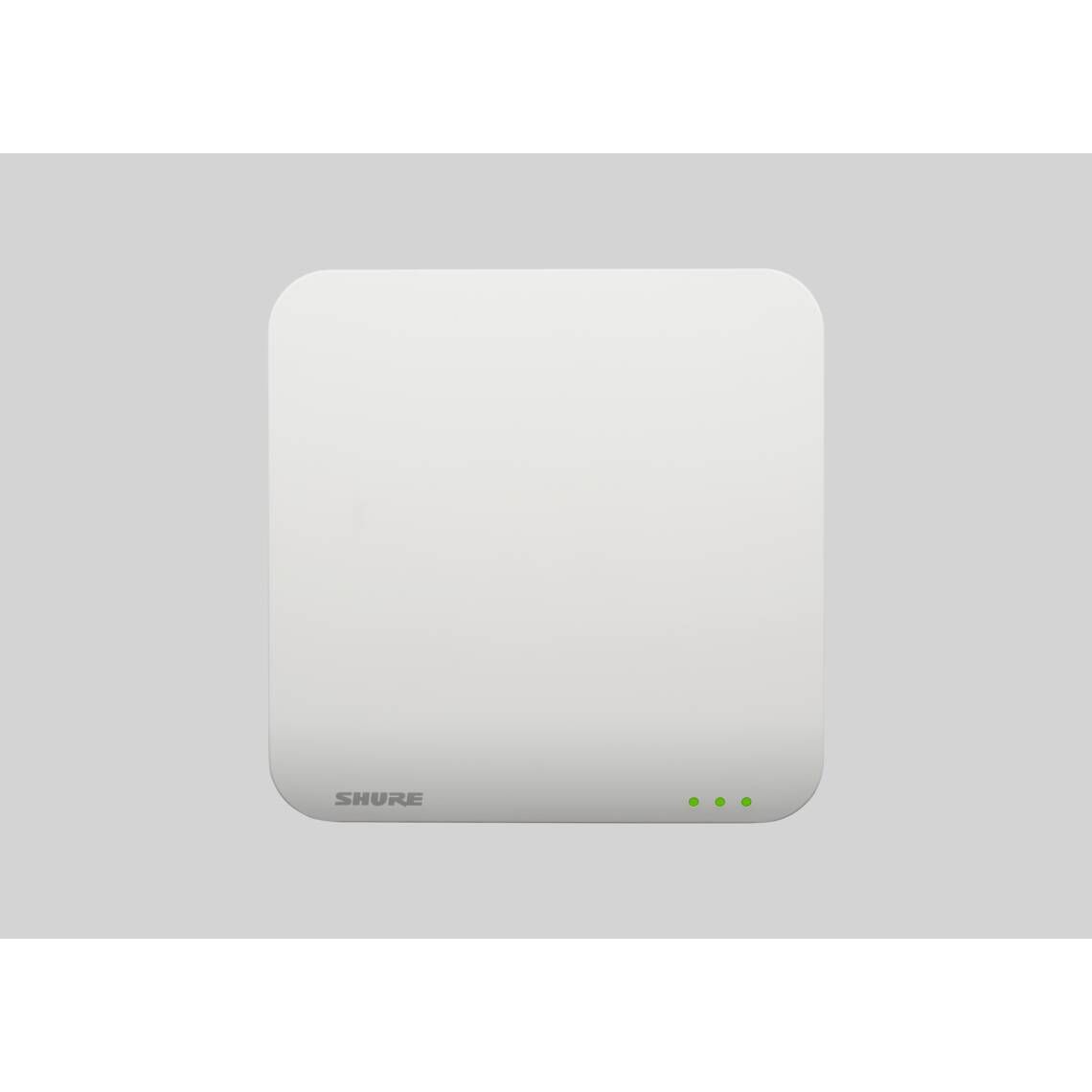

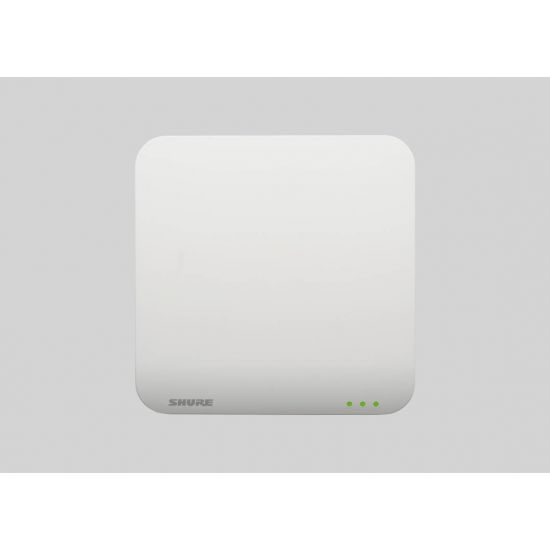

The MXWAPT is a 4-channel wireless access point compatible with Microflex Wireless microphone systems. It uses automated frequency coordination to assign clean frequencies to wireless microphones and manages two-way wireless transmission of encrypted audio and control signals. Power to the unit (via PoE) and Dante digital networked audio are both supplied over a single Ethernet cable to simplify installation, and the supplied mounting plate and paintable cover allow discreet placement in boardrooms and conference rooms where low visibility is preferred.

Features

• Slim profile: Lightweight, discreet unit with paintable cover to match interior room colors and blend into AV environments
• Easy installation: Includes wall/ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
• Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
• Scalable configurations: Available in 4 or 8 channel models to fit varying channel count requirements, and multiple units can be combined support configurations of up to 32 compatible channels (40 in Europe and select countries)
• Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real time remote control of all wireless microphone settings
• Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
• Dante™ digital networked audio: Transports low latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
• Encrypted wireless: AES 256-bit encryption for secure transmission
• Selectable output power: Optimise spectrum usage by selecting the appropriate wireless output power for the desired operating range
• Diagnostic LEDs: Provide easy visual reference to system activity and indicate power, wireless connection, and network audio status
• Wireless transmission uses DECT technology for more than 80 audio channels per system.
• High Density mode to maximize the channel count (country specific information in the table below)

• Network Interface: RJ45: Gigabit Ethernet, Dante digital audio
• Plenum Rating: UL 2043
• Power Requirement: Power over Ethernet (PoE) Class 0, 6.5W
• Antenna Type: Internal, Spacial Diversity, Circular Polarization
• Housing: Molded Plastic, Cast Zinc
• Dimensions: 24 mm × 170 mm × 170 mm (1.35 in. × 6.7 in. × 6.7 in.), H × W × D, Without mounting plate or cover
• Weight: APT8 856 g (1.9 lbs),APT4 845 g (1.9 lbs), APT2 845 g (1.9 lbs), Paintable Cover 85 g (0.2 lbs), Mounting Bracket 68 g (0.15 lbs)
