Shure - P9TE - L6E (656-692 MHz)

Shure - P9TE - L6E (656-692 MHz)

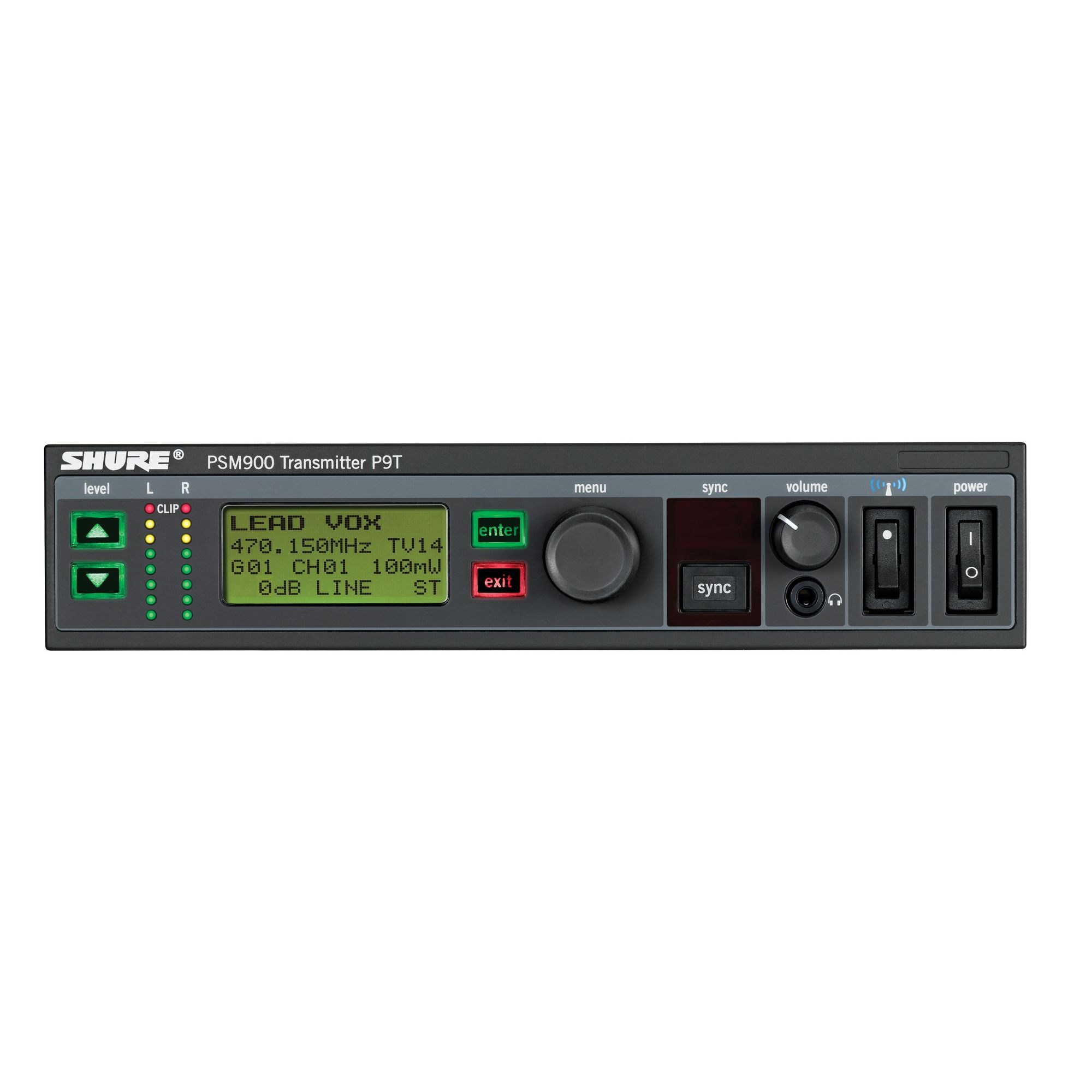

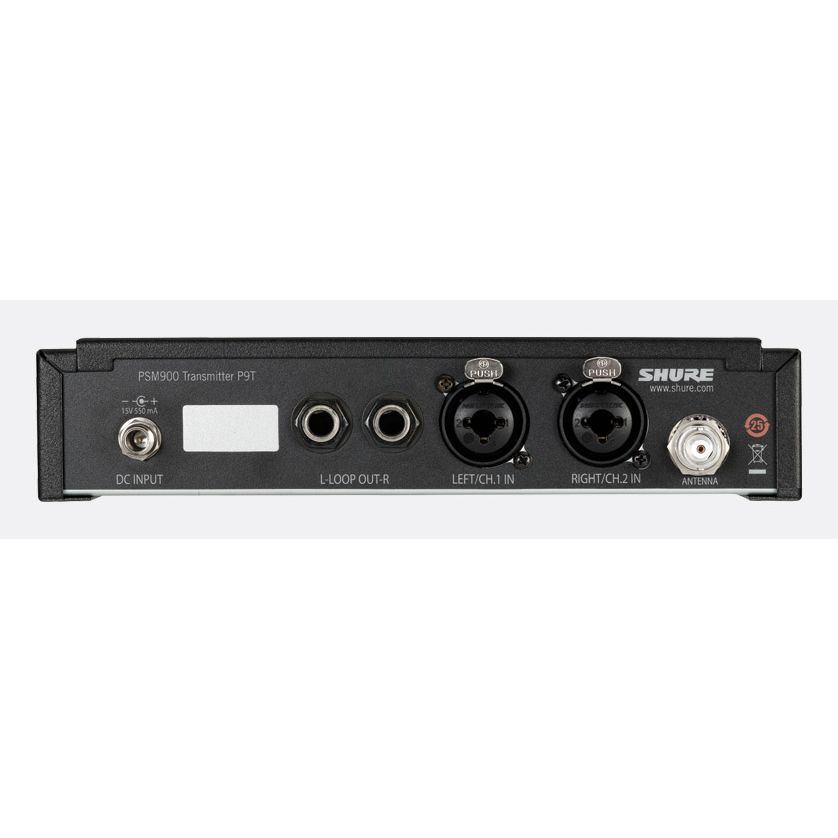

The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM®900 Wireless Personal Monitor System. It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation. Connections include balanced 1/4” and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.

Features

• RF Mute Switch allows system setup without causing RF interference
• Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
• Front panel audio input gain adjustment and LED level meter with clipping indicator
• Front or back mountable antennas
• Compatible with PA421B and PA821B antenna combiners
• Loop out connectors for multiple mix setups and easy installation
• Switchable +4 dBu and -10 dBV input level
• Balanced, 1/4” and XLR connectors
• Bit-mapped, backlit LCD
• Includes rack-mounting hardware
• 1/8” headphone out on the front panel for easy monitoring

• RF Carrier Range 470–952 MHz (regionally dependent)
• Compatible Frequencies 20 per band
• Tuning Bandwidth: 36 MHz – 40 MHz (regionally dependent)
• Operating Range (environment dependent): 90m (300ft)
• Audio Frequency Response: 38Hz – 15kHz
• Stereo Separation: 60 dB
• Signal-To-Noise Ratio (A-Weighted): 90 dB (typical)
• Total Harmonic Distortion (ref. ±34 kHz deviation @1 kHz): <0.5% (typical)
• Companding: Patented Shure Audio Reference Companding
• Spurious Rejection (ref. 12 dB SINAD): >80 dB (typical)
• Frequency Stability: ±2.5 ppm
• MPX Pilot Tone:19 kHz (±0.3 kHz)
• Modulation: FM, ±34 kHz deviation (nominal), MPX Stereo
• Operating Temperature: -18°C – +57°C
