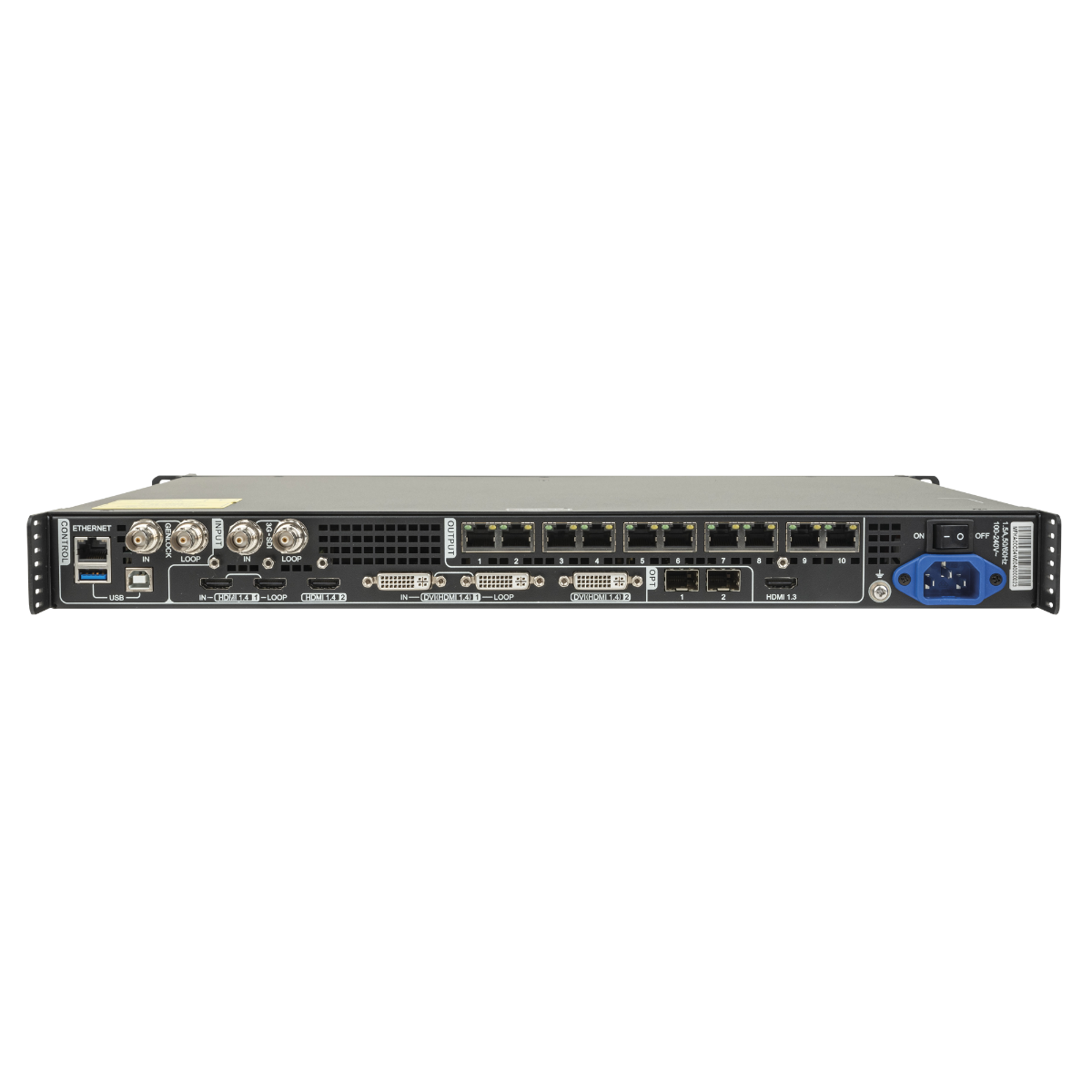

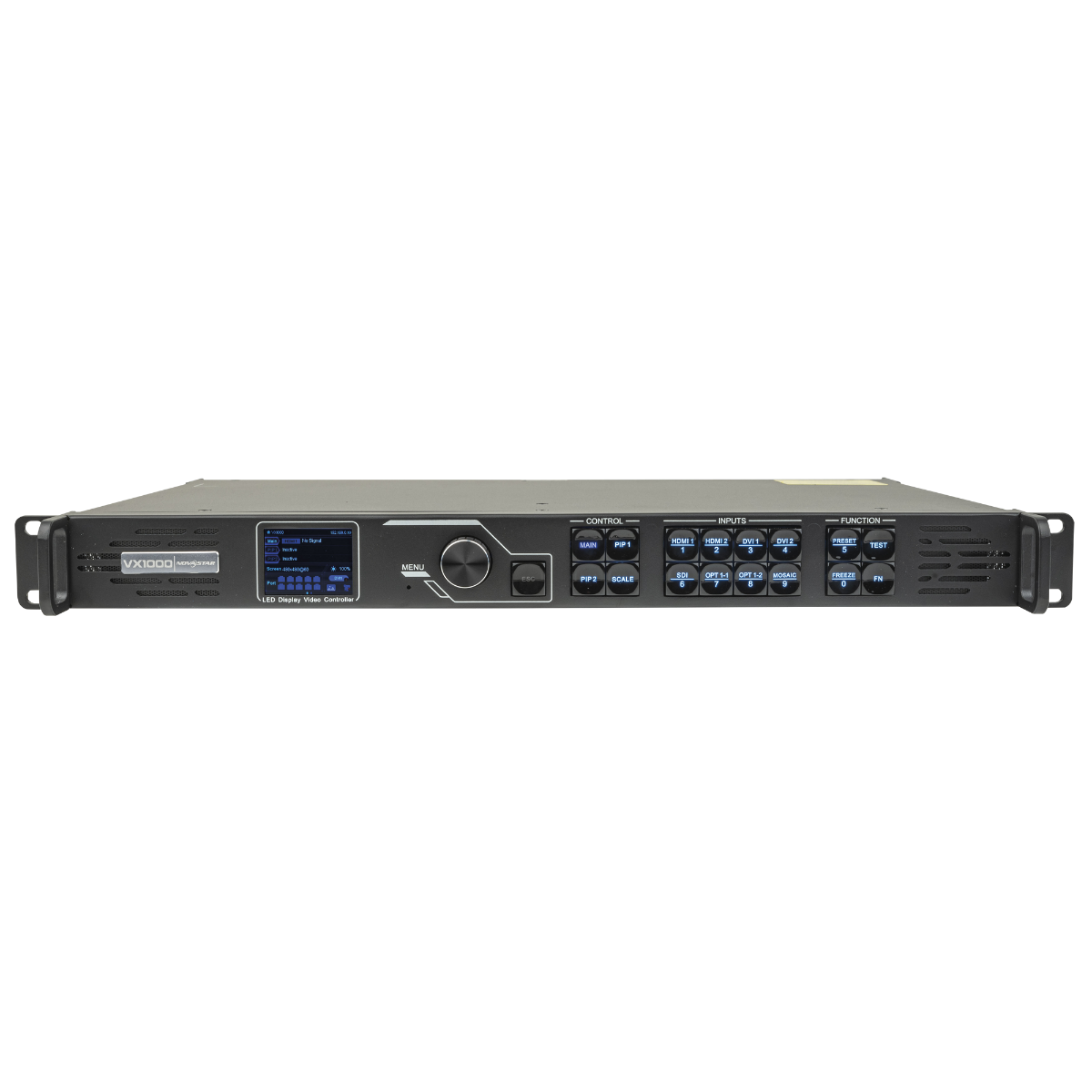

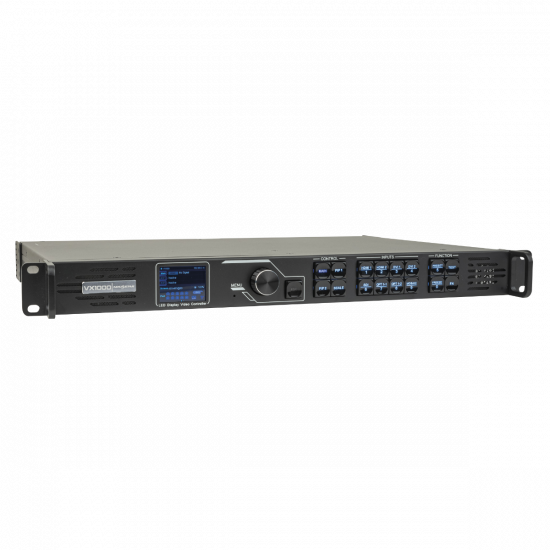

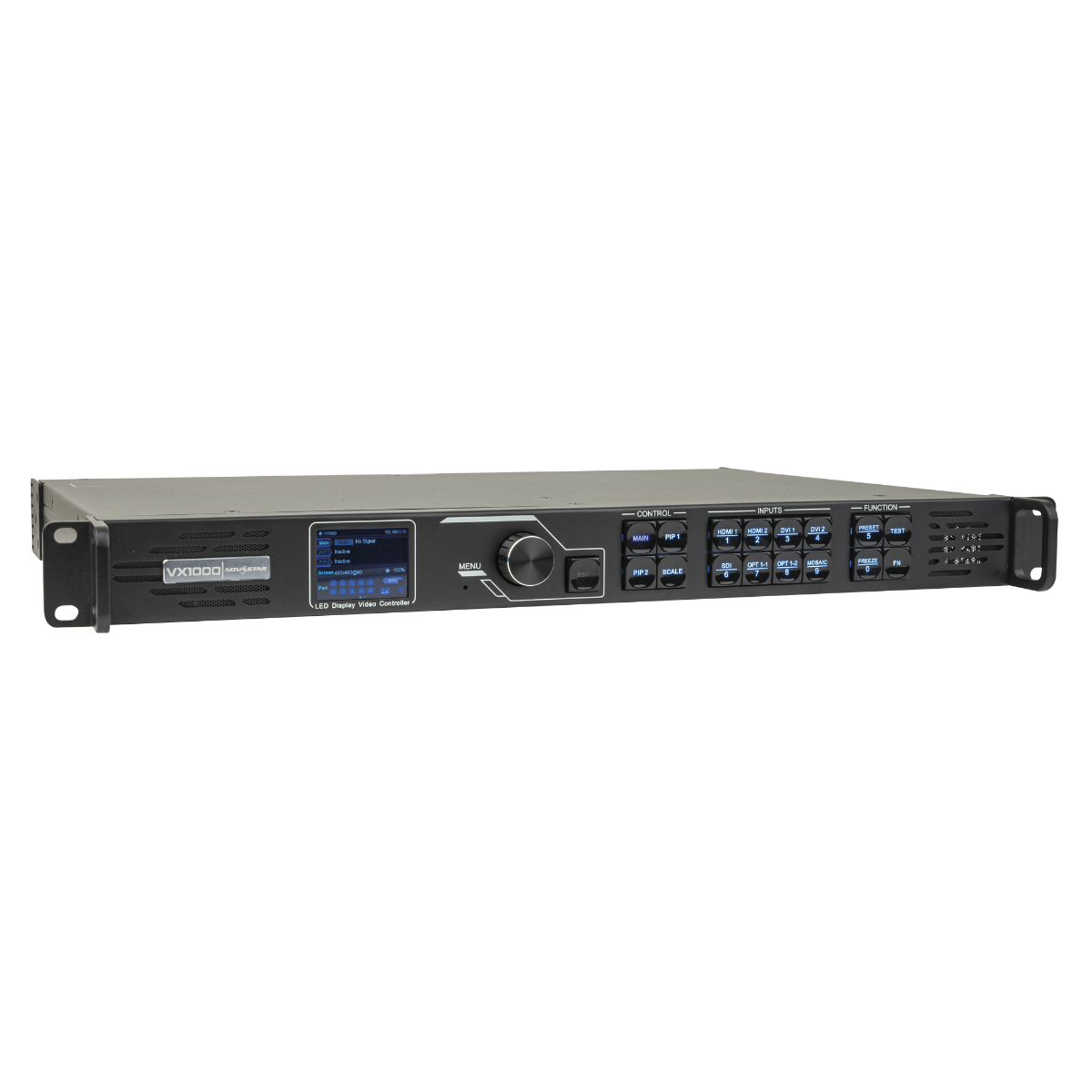

NovaStar - VX1000
The VX1000 is a powerful video processor that offers an all-in-one solution for driving your big LED screen(s). As the bigger brother to the VX4S-N, it can drive much higher resolutions and more LED screens. It drives up to 6,500,000 pixels in total, at up to 10,240 pixels wide or up to 8,192 pixels high, which is ideal for ultra-wide and ultra-high LED screen applications.
Features
Internal scaling function and Image Mosaic support
Inputs: 1x 3G-SDI, 2x DVI, 2x HDMI 1.4
Outputs: 1x HDMI 1.3, 10x Ethernet, 2x optical (optional)
Supports 2x PIP
10 output ports control up to 6,500,000 pixels
Inputs
HDMI 1.4a: 2
Dual Link DVI: 2
3G-SDI: 1
Outputs
Main Outputs: 10
HDMI 1.3 (MVR): 1
HDMI 1.4a (Loop): 1
Dual Link DVI (Loop): 1
3G-SDI (Loop): 1
Optical
SFP Slot Type: 10G
SFP Slot Quantity: 2
Software Specifications
Control Software: Novastar LCT, Smart LCT, Vcan
Extra Features
Scaling Function: Yes
Image Mosaic: Yes
PIP: Yes
Layers: 3
GenLock: In & Out
Control and Programming
Display: LCD
Maximum Loading Capacity: 6.5 Mpx
Maximum Input Resolution:3840 x 1080, Width and Height can be defined by users
Control Options: Ethernet, USB
Electrical Specifications and Connections
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 28 W
Power Connector In: IEC
Data Connector In: RJ45, USB
Data Connector Out: RJ45, USB
Mechanical Specifications
Width (Including Handles): 483 mm
Width (Without Handles): 440 mm
Height (Without Handles): 50 mm
Depth (Including Handles): 351 mm
Depth (Without Handles): 321 mm
Weight: 4.05 kg
Rack Units: 1 U
IP Rating: IP20 (indoor use only)
Colour: Black
Prod uct Properties
Thermal Specifications
Maximum Ambient Temperature: 60 °C
Minimum Ambient Temperature: -10 °C
Operating Humidity: 20-90 %rH
More Information
Brand
NovaStar
