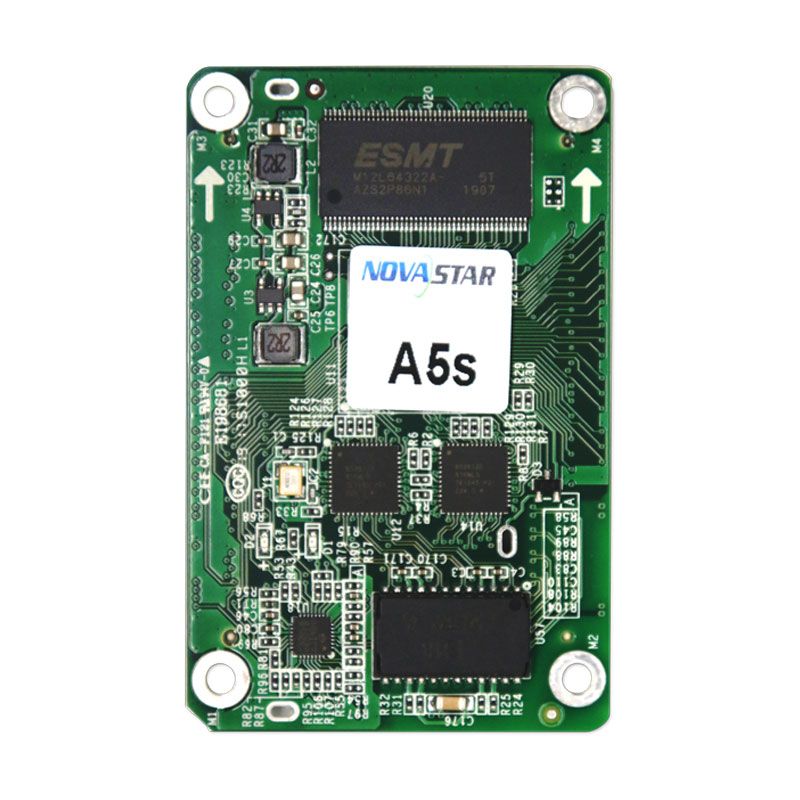

NovaStar - A5S Receiving Card

NovaStar - A5S Receiving Card

A5s is a high-end receiving card developed by NovaStar, featuring small size and large loading capacity with a single card loading up to 320×256 pixels (8-bit)/256×256 (10-bit/12-bit). It supports up to 32 parallel data groups and 128 serial data groups.

A5s supports pixel level brightness and chroma calibration by working with NovaLCT and NovaCLB to realize calibration on each pixel. It can effectively remove color difference and greatly improve LED display image consistency, presenting smoother images to users. In addition, it also supports image rotation in 90° increments, creating richer images and improving visual experiences. Software and hardware designs of the A5s concern the user deployment as well as operating and maintenance scenarios, enabling easier deployment, more stable operating and more efficient maintenance.

Features

• Support for 3D function.
• Support for auto module calibration.
• Support for Mapping function.
• Support for pre-stored image setting of the receiving card.
• Support for module Flash management.
• Supports monitoring voltage and temperature of itself without using other peripherals.
• Support for monitoring of Ethernet cable communication status.
• Support for 5-pin LCD module.
• Support for image rotation in 90° increments.

Maximum Loading Capacity

• 320×256 pixels (8-bit)
  256×256 pixels (10-bit/12-bit)

Electrical Parameters

• Input voltage: DC 3.3 V–5.5 V
• Rated current: 0.5 A
• Rated power consumption: 2.5 W

Operating Environment

• Temperature: -20°C–+70°C
• Humidity: 10% RH–90% RH, non-condensing

Storage Environment

• Temperature: -25°C–+125°C

Packing Information

• Packing specifications: Each card is shipped with an antistatic bag and anti-collision foam. Each box contains 40 cards.
• Packing box dimensions: 378.0 mm × 190.0 mm × 120.0 mm

Dimensions

• 70.0 mm × 45.0 mm × 7.3 mm

Net Weight

• 17.3 g

Certifications

• RoHS
• EMC Class B
