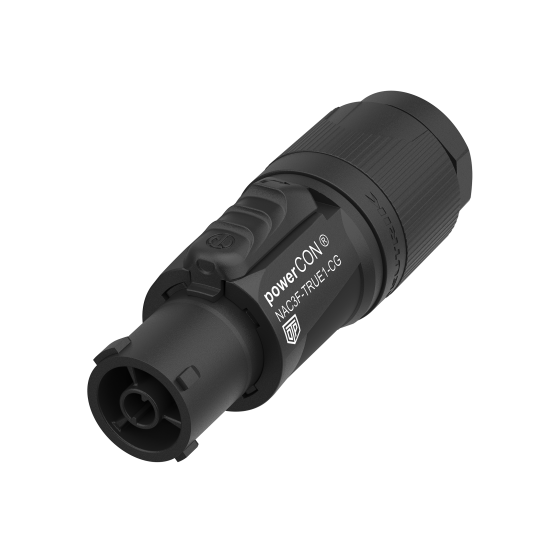

Neutrik | NAC3F-TRUE1-CG-D - PowerCON TRUE1 Female [100pcs]

Neutrik | NAC3F-TRUE1-CG-D [100 pieces]

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.  The new cable entry achieves IP65, IP66 and IP67.

Features

• Heavy duty sealed power connector for harsh and demanding environment
• Uses high impact UV-resistant materials
• Lockable single phase connector
• Extremely robust and reliable
• ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
• UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
• IP65, IP66 and IP67 (mated)
• True mains connector with breaking capacity (CBC)
• Easy and reliable twist lock system
• Unique NEUTRIK locking bushing and strain relief for cable diameters 8 mm to 13 mm (0.31– 0.51 inches)

• Product: NAC3F-TRUE1-CG
• Product Family: powerCON® TRUE1

Electrical

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 1 GΩ (after damp and heat test IEC 68-2-30)
• Number of electrical contacts: 2 + PE
• Rating Europe: 16 A / 250 V AC according to EN IEC 60320-1
• Rating America: 20 A / 250 V AC according to UL 60320-1, 20 A / 250 V AC according to CSA C22.2 No. 60320-1

Mechanical

• Cable O.D.: 8 - 13 mm (0.31 – 0.51 inches)
• Lifetime: > 5000 mating cycles
• Wiresize (mm²): 1.5 - 2.5 mm²
• Wiresize (AWG): 12 AWG

Material

• Contact plating: 2 μm Ag
• Locking element: Polyamide (PA 66)
• Contacts: Copper Alloy
• Insert: Polyamide (PA 66)
• Shell: Polyamide (PA 66)
• Strain relief: Polyketon

Environmental

• Flammability: UL 94 V-0
• Protection class: IP65, IP66 and IP67 (mated)
• UV resistance: F1 rated material withstands UV exposure
• Operating temperature range: -30 °C to +80 °C according to IEC 61984, -5 °C to +40 °C according to IEC 60320-1
