Eurotruss | HD44-050 - Box Truss Length 50cm

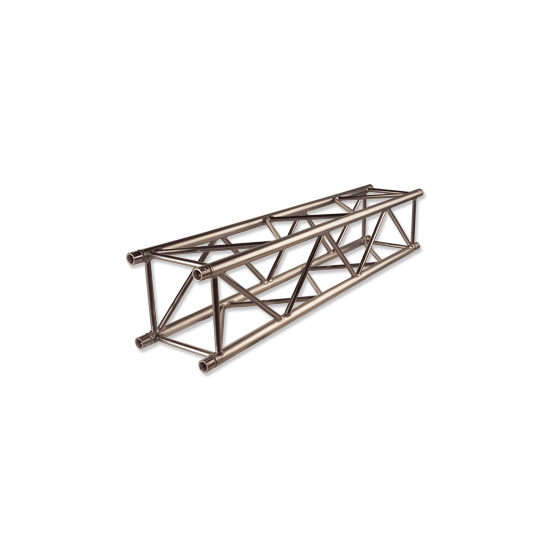

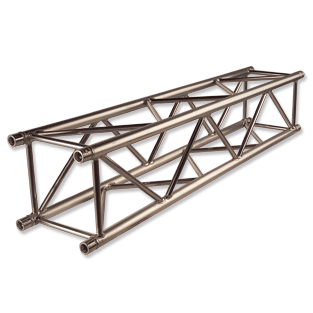

Eurotruss - HD44-050

HD44 with excellent load capacity on free spans of 18m or to be used as tower elements with an extra welded climbing brace on one side (TD44).

HD44 is using the 3 mm wall thickness in the main tube which assures durability and extra strength. Designed for high frequency usage or installations, which demands higher loading. Ideal trussing system for rental, touring and exhibition companies. Made with the fast CS1 connection system.

Features

• TüV approved
• Also available in any non-standard length and shape
• Tolerance free conical connector system
• Wall thickness of 3 mm for 50 mm main tubes
• HD44 is also available as a Tower Truss (TD44)

• Type: HD44
• Height: 400
• Width: 400
• Weight: ~9.5kg/mtr
• Main tube: 50x3 mm
• Braces: 25x2 mm
• Material: AlMgSi 1 F31/EN AW 6082 T6
• Connection System: Eurotruss FD
