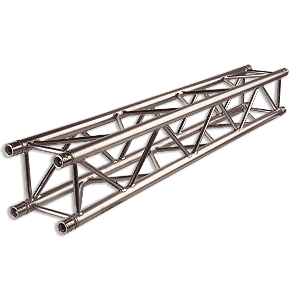

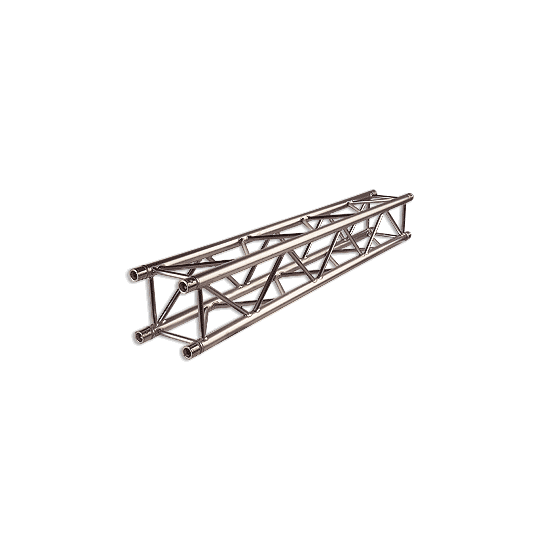

Eurotruss - FD34-200

Eurotruss - FD34 200cm

FD34 straight elements lend themselves to use as span exposed to bending stress resistant span or as tower elements. Very suitable for bracing widths up to 12 m (16 m at reduced loads) at medium loads. Permitting almost limitless possibilities for the technical realization of creative ideas. Made with the fast connection system and tested according to the Din 4113/VBG 70 specifications by the TuV.

• FD34 Square Trussing
• Square trussing with a square profile geometry for medium loads
• Tolerance free connection with conical connector
• High Stability aluminium alloy
• Optimum manufacturing quality
• TuV Tested

• Type: FD34
• Height:290mm
• Width: 290mm
• Weight: ~6kg/mtr
• Main tube: 50x2 mm
• Braces: 20x2 mm
• Material: AlMgSi 1 F31/EN AW 6082 T6
• Connection System: Eurotruss FD
