Eurotruss - FD34 071
List price:
€132.07
Excl. Tax
Your price:
€99.05
Excl. Tax
Your discount:
25%
Last stock:
1 piece
1 piece
Art. code
ET-40.4071

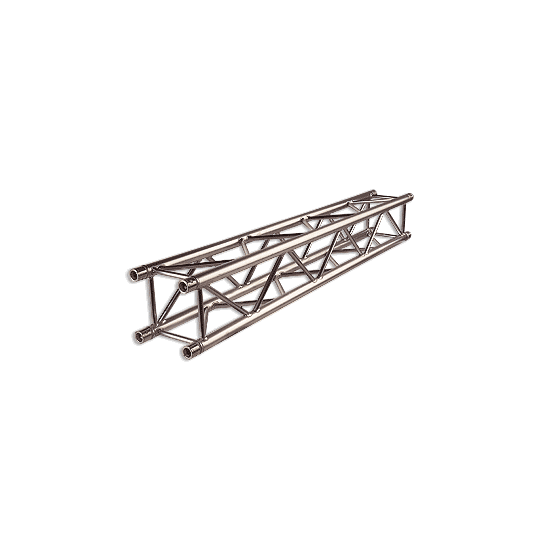

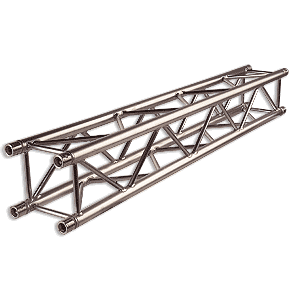

Eurotruss - FD34 071
FD34 straight elements lend themselves to use as span exposed to bending stress resistant span up to 16m or as standard tower element. FD34 using the 2mm wall thickness assures durability and strength.
Designed for high-frequency usage or installations, which demands higher loading. Ideal trussing system for rental, touring and exhibition companies.
Eurotruss - FD34 071
- FD34 Square Trussing
- Square russing with a square profile geometry for medium loads
- Tolerance free connection with conical connector
- High Stability aluminium alloy
- Optimum manufacturing quality
- TuV Tested
- Available in any non-standard length and shape
FD34 straight elements lend themselves to use as span exposed to bending stress resistant span or as tower elements. Very suitable for bracing widths up to 12 m (16 m at reduced loads) at medium loads. Permitting almost limitless possibilities for the technical realization of creative ideas. Made with the fast connection system and tested according to the Din 4113/VBG 70 specifications by the TuV.
TECHNICAL SPECIFICATIONS
- Type: FD34
- Height:290mm
- Width: 290mm
- Weight: ~6kg/mtr
- Main tube: 50x2 mm
- Braces: 20x2 mm
- Material: AlMgSi 1 F31/EN AW 6082 T6
- Connection System: Eurotruss FD
| Brand | Eurotruss |
|---|
