Sennheiser | SR 2050 IEM - GW (558-626 MHz)

Sennheiser - SR 2050 IEM-GW (558-626 MHz)

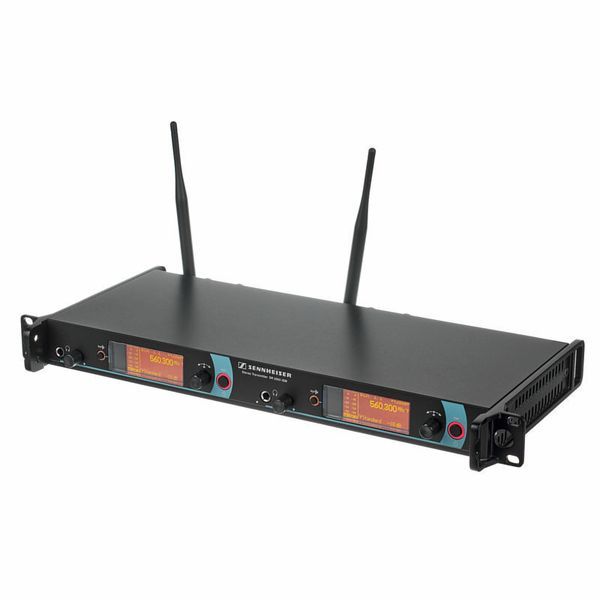

The SR 2050 rack-mount twin transmitter is an in-ear monitoring system designed to meet the highest demands for audio quality and RF transmission and is therefore the first choice for professional touring, broadcast, musical and theater applications. Network-compatible and remotely controllable with the Wireless System Manager (WSM) software.

• Rugged 19" all-metal housing with integrated power supply unit
• Up to 3000 frequencies in up to 75 MHz switching bandwidth
• 20 fixed frequency banks with up to 32 compatible presets
• 6 banks each with up to 32 tunable channels
• Frequency setting in 25 kHz steps
• Switchable RF output power for versatile use
• Enhanced audio frequency response in the bass range
• Receivers can be configured from the transmitter menu
• Can be synchronized with the receiver using infrared interface
• Monitoring and control using Sennheiser WSM PC software
• User-friendly menu interface with two-color backlit graphic display (red as a warning)
• Pilot tone transmission for interference-free operation
• Adjustable headphone connections
• For universal application due to extensive range of accessories

Specifications

• Frequency range: 558 ... 626 MHz / SR 2050 IEM GW
• Dimensions: 436 x 215 x 43 mm
• Compander: HDX
• Audio-XLR connector: 4 x XLR, 4x 6,5 mm Jack
• Presets: max. 32
• Frequency response: 25 - 15000 Hz
• Weight: 2900 g
• Signal-to-noise ratio: > 90 dB(A)
• RF output power: 10, 30, 50 mW (XP: 100 mW) switchable
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Modulation: FM, MPX-stereo
• Power supply: 100 - 240 V AC, 50/60 Hz
• Carrier frequencies: max. 3000
• Antenna connector: 2 x BNC
• Current consumption: 0,2 A
• Headphone connector: > 100 mW (32 Ω)
• Input voltage range: + 22 dBu max
