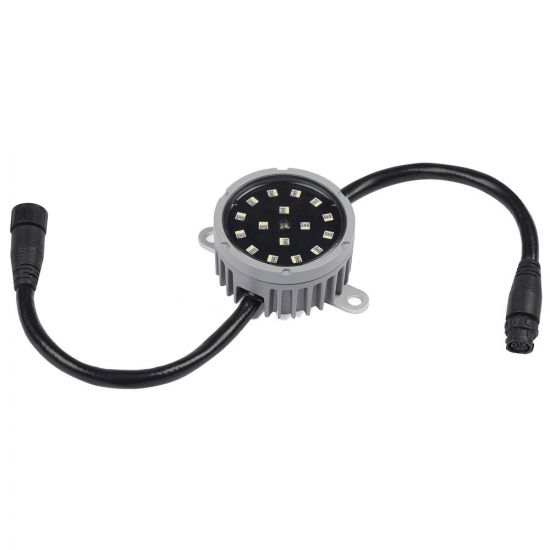

Martin | Exterior Dot-HP Pro, Clear Front

The Martin Exterior Dot-HP Pro is a bright, outdoor-rated RGBW Dot, designed to create media facades or perimeter lighting on large buildings and structures for long-distance viewing. Each Exterior Dot-HP Pro is color- and brightness-calibrated for superior visual consistency across the entire installation. Exterior Dot-HP Pro is controllable via Martin P3 System Controllers or any sACN or Art-Net-based controller.

It is the perfect solution for integrating LED video technology into façades, landmarks, architectural elements or any other structure, indoors or out. The Exterior Dot-HP Pro comes with hybrid In/Out connectors for easy and versatile installations options.

Mapping video onto Exterior Dot-HP Pro is quick and intuitive via the P3 System Controller, eliminating the need for complex setups and time-consuming addressing. Each Exterior Dot-HP Pro includes 16 RGBW LEDs with a total luminous intensity of 90 candela.

Unifying unparalleled performance, adaptability, and intuitive operation, the Exterior Dot Pro family doesn’t just enable lighting designers and professionals to surpass the limitations of traditional systems, it inspires them to redefine the boundaries of creative video design.

Features

Powerful, connector-based, direct-view LED lighting
Powered directly from Martin P3 PowerPort or third-party 48 VDC PSU
Large footprint of 78 mm diameter with clear front or diffused dome.
Perfect for façade or stage integration
Fully-weatherized housing (IP67, IK08 and C-5 High corrosion rating)
Martin P3/Art-Net/sACN compatible (automatic protocol detection)
Setup and Addressing via RDM over Art-Net or Martin P3
Real-time status feedback via RDM over Art-Net and Martin P3
Individually-controllable RGBW Dots
Color boost for bright, saturated, and mixed colors
Dedicated color temperature control channel
In-built Effect Macros (FX) for easy creation of stunning looks
Up to 68 Exterior Dot-HP Pro units can be daisy-chained
Reduced power mode for longer cable runs and fixture counts
Combined power/data input over single cable (hot-pluggable)
Superior color and brightness consistency based on factory calibration
Stand-alone programming with up to 20 scenes
Intuitive mapping and addressing via P3 System Controller family
Shipped in FSC-certified carboard packaging
5-year warranty

Specifications

Physical

Diameter: 78 mm (3.1 in.)
Weight: 395 g (0.86 lbs.)
Height with clear front: 43 mm (1.7 in.)
Height with dome front: 58 mm (2.3 in.)

Control and Programming

Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
Control protocols: Martin P3, Art-Net or sACN
Protocol detection: Automatic
Setting and addressing: Martin P3 System Controller or RDM (over Art-Net)-compliant controller
RDM: ANSI/ESTA E1.20
DMX modes: Standard, Extended, Raw, RGB or PixelMap
DMX channels: 6, 12, 4, 3, 48
Fixture identification: User-settable ID number
Art-Net compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN compliance: ANSI E1.31 – 2016
Martin P3 compliance: P3 System Controller Software 6.1.0 or newer
Ethernet transceiver: 10/100 Mbit
Firmware update: Via Ethernet using Martin Companion / P3 System Controller

Optics

Light source: 16 × RGBW LEDs
Minimum LED lifetime: 100,000 hours (to >70% luminous output)*
LED manufacturer: LumiLeds
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration

* Figure obtained under manufacturer's test conditions at Ta 25°C.

Photometric Data

CRI (Color Rendering Index): > 70
Color resolution: 16 bits per color (64 bit per pixel)
Dot pitch: 78 mm – 500 mm (fixture to fixture)
Color temperature: 2,000 – 12,000 K
Viewing angle: (clear front) 150°, (diffused dome) 180°

* Dot pitch can be extended using hybrid DCE cables.

Luminous Intensity

Full @ 6500 K: 106 cd (clear front), 56 cd (diffused dome)

Luminous Output

Full @ 6500 K: 295 lm (clear front), 190 lm (diffused dome)
Red: 80 lm (clear front), 50 lm (diffused dome)
Green: 255 lm (clear front), 170 lm (diffused dome)
Blue: 45 lm (clear front), 30 lm (diffused dome)

* All Photometric Data measured in steady state (30 minutes warm-up) at 25°C ambient.

Construction

Color: Traffic Grey RAL 7042 (custom colors available on request)
Surface treatment: Anodized and electrostatic powder-coated
Base: Cast aluminum
Protection rating: IP67
Effective Projected Area (EPA): 0.007 m²
Impact resistance: IK08
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0 g, Sinusoidal (IEC 60068-2-6), 0.7 g RMS Random (IEC 60068-2-64), 3.0 g (ANSI C136-31)

Installation

Mounting points: Direct surface mount or accessory mounting plate
Orientation: Any

Connections

Input: DCE connector cable tail for power & data input, IP67
Output: DCE connector cable tail for power & data thru, IP67
Connection: Hot-pluggable
Max. daisy-chain (Full Mode): 68 fixtures including 50 m cable
Max. daisy-chain (Reduced power mode): 125 fixtures including 50 m cable

* Refer to system diagram for details on fixture run limitations.

Electrical

Nominal input voltage: 48 VDC ± 4%
Power supply options: Martin P3 PowerPort 2000, P3 PowerPort 500 IP Install, P3 PowerPort 500 IP Rental, Martin DCE PSU 240 IP or generic 48 VDC PSU
Surge protection: 4 kV

Power Consumption

Maximum power consumption: 5.7 W in full power mode, 3.2 W in reduced power mode
Idle: 1.8 W
Hibernation: 1.5 W

* Measurements made at nominal voltage. Allow for a deviation of ±10%. Idle: zero intensity. Hibernation: zero intensity, wake-up procedure to re-use fixture.
