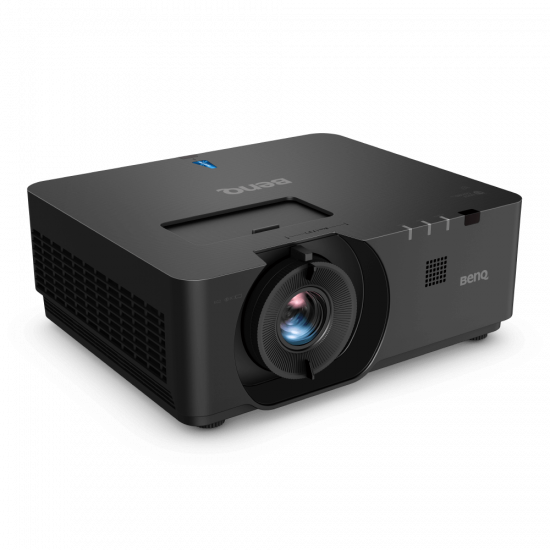

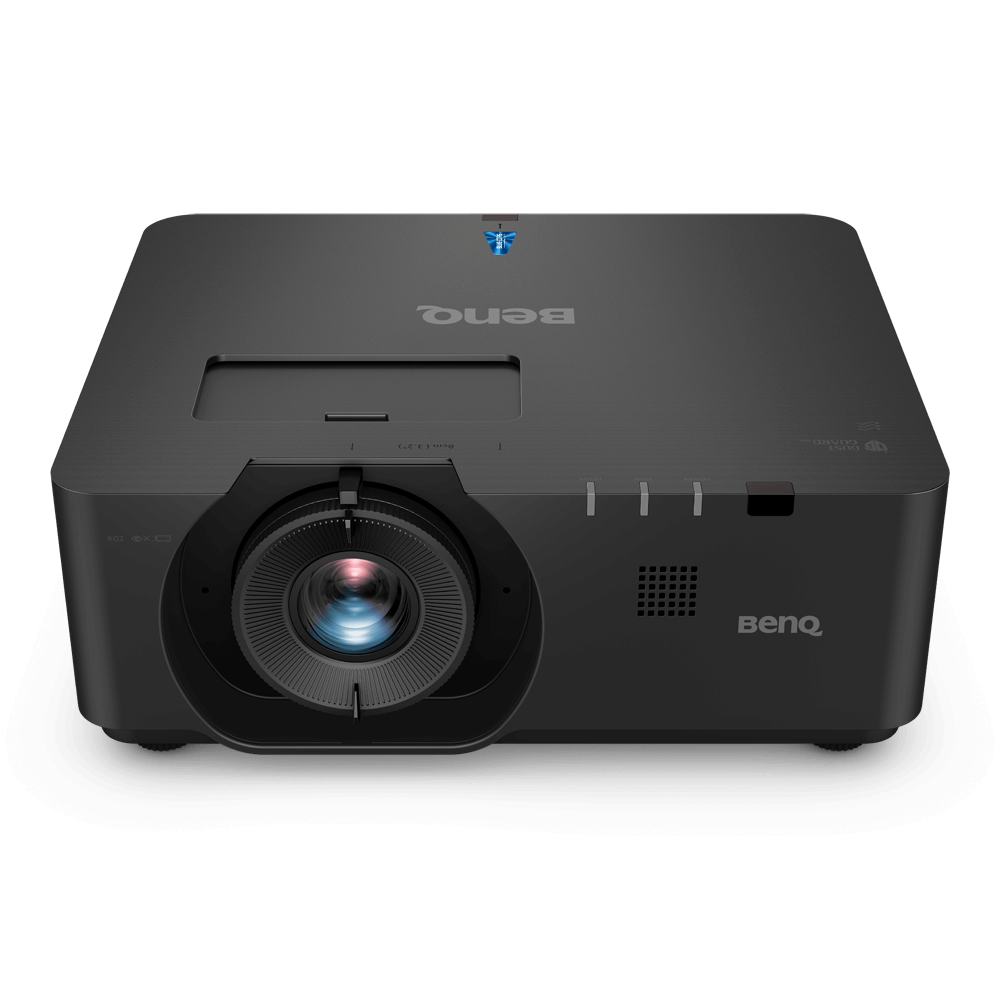

BenQ - LU960ST - Installation Laser projector

BenQ - LU960ST - Installation Laser projector

Reproduce True-to-life Images for Totally Immersive Experiences (T/R 0.77-0.84)

• Flexible Installation: Support wide corner fit adjustment and precise square lens shift route
• Amazing Colour Accuracy: sRGB Mode for 92% Rec 709 colour accuracy
• Fast Mode: Latency<17ms (@WUXGA/60Hz) response enables realistic simulation and gaming
• White Balance Adjustment in Factory: White balance calibration for seamless blending
• Maintenance-Free Laser: Dustproof sealed laser engine with 30,000 hours of life at full power

Revolutionary Laser Technology
Extending its full line of revolutionary laser projectors, the world’s No.1 DLP brand BenQ presents LU960ST, especially designed for short throw fixed lens installation and reserves installation flexibility to merge into limited space.

DLP Technology for Long Lasting Vibrant Color
BenQ laser projectors run on Academy Award-winning DLP technology to deliver long-lasting and reliable color for the life of the projector. The DLP chip is rated for 200,000 hours and will display stunning whites and accurate colors without the risk of yellowing over time.

Superior Dustproofing for Severe Conditions with IP5X Certification
BenQ laser projectors are designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser package, and other optical components. This lock-and-key design hermetically seals the engine from dust to prolong projector lifespan.

High Brightness Vivid Clarity in Bright Ambient Environments
LU960ST’s 5500AL high brightness produces wondrous displays in bright, compact exhibition spaces with superb image quality.

Ensure Consistent Brightness Blending with Custom Light Mode
Custom Light Mode modulates light power output from 25% to 100% at a 1% rate, optimizing the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.

Display

• Brightness (ANSI lumens): 5500
• Native Resolution: WUXGA (1920x1200)
• Native Aspect Ratio: 16:10
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: a. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 75000 hrs

Optical

• Throw Ratio: 0.77-0.84
• Zoom Ratio: 1.1x
• Lens: F/# = 1.9 ~ 1.954,f = 8.14 ~ 8.921 mm
• Projection Offset (Full-Height): 0%
• Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
• Lens Shift Vertical: -62%~ +62%
• Lens Shift Horizontal: -24%~ +24%


• Rec. 709 Coverage: 92%
• Picture Modes: 3D, Bright, DICOM SIM, HDR10, HLG, Presentation, sRGB, User 1, User 2, Video

Compatibility

• Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
• Horizontal Frequency: 15K~135KHz
• Vertical Scan Rate: 23~120Hz

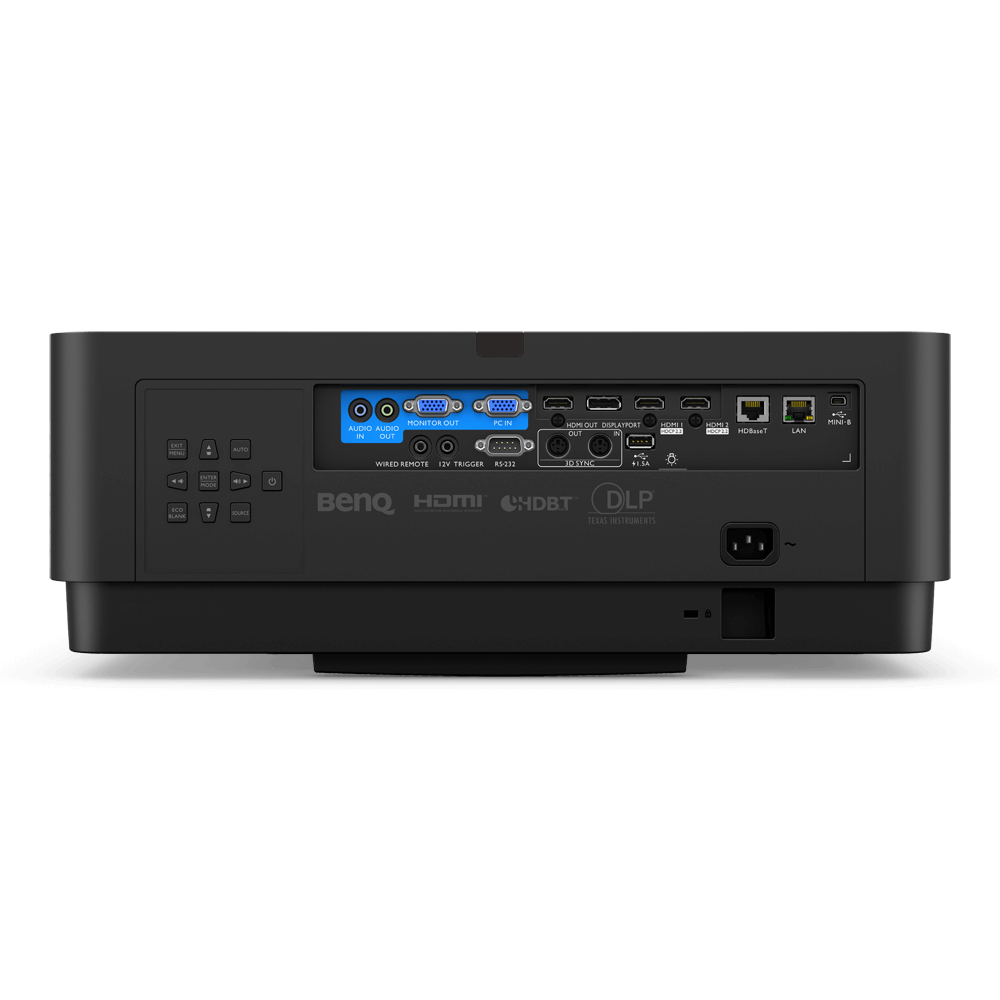

I/O Interface

• PC in (D-sub 15pin):(x1), PC in-1
• Monitor out (D-sub 15pin): (x1)
• HDMI in: (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
• Monitor out (HDMI): (x1)
• Display Port: (x1)
• HDBaseT (RJ45): (x1), Control/Video/Audio
• 3D Sync in: (x1)
• 3D Sync out: (x1)
• USB Type A: (x1), USB Type A-1 (2.0/Power Supply1.5A)
• USB Type Mini B: (x1), USB Type Mini B-1(service)
• RS232 in (DB-9pin): (x1)
• Wired Remote in (3.5mm Mini Jack): (x1)
• DC 12V Trigger (3.5mm Jack): (x1)

Audio

• Speaker: (x1), 10W
• Audio in (3.5mm Mini Jack): (x1)
• Audio out (3.5mm Mini Jack): (x1)

Environment

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 450W
• Stand-by Power Consumption: <0.5W
• Network Stand-by Power Consumption: <2W

Accessories

• Remote Control w/ Battery: RCA024
• Power Cord (by region): x1 (1.8M)
• 3D Glasses: (Optional), DGD5
• Installation Guide: 1 (8L)
• Warranty Card (by region): Yes

Projection System

• Projection System: DLP
