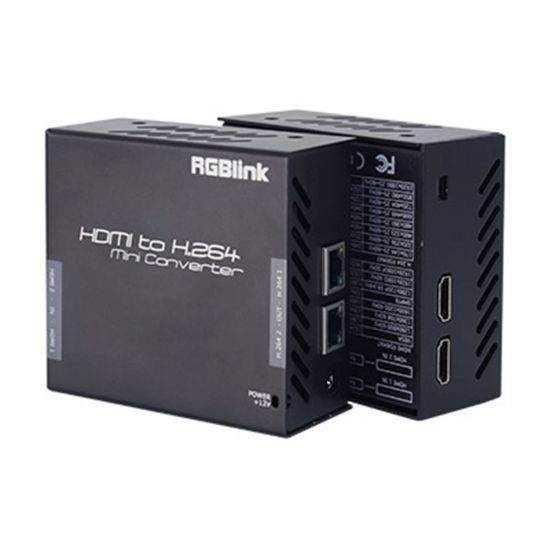

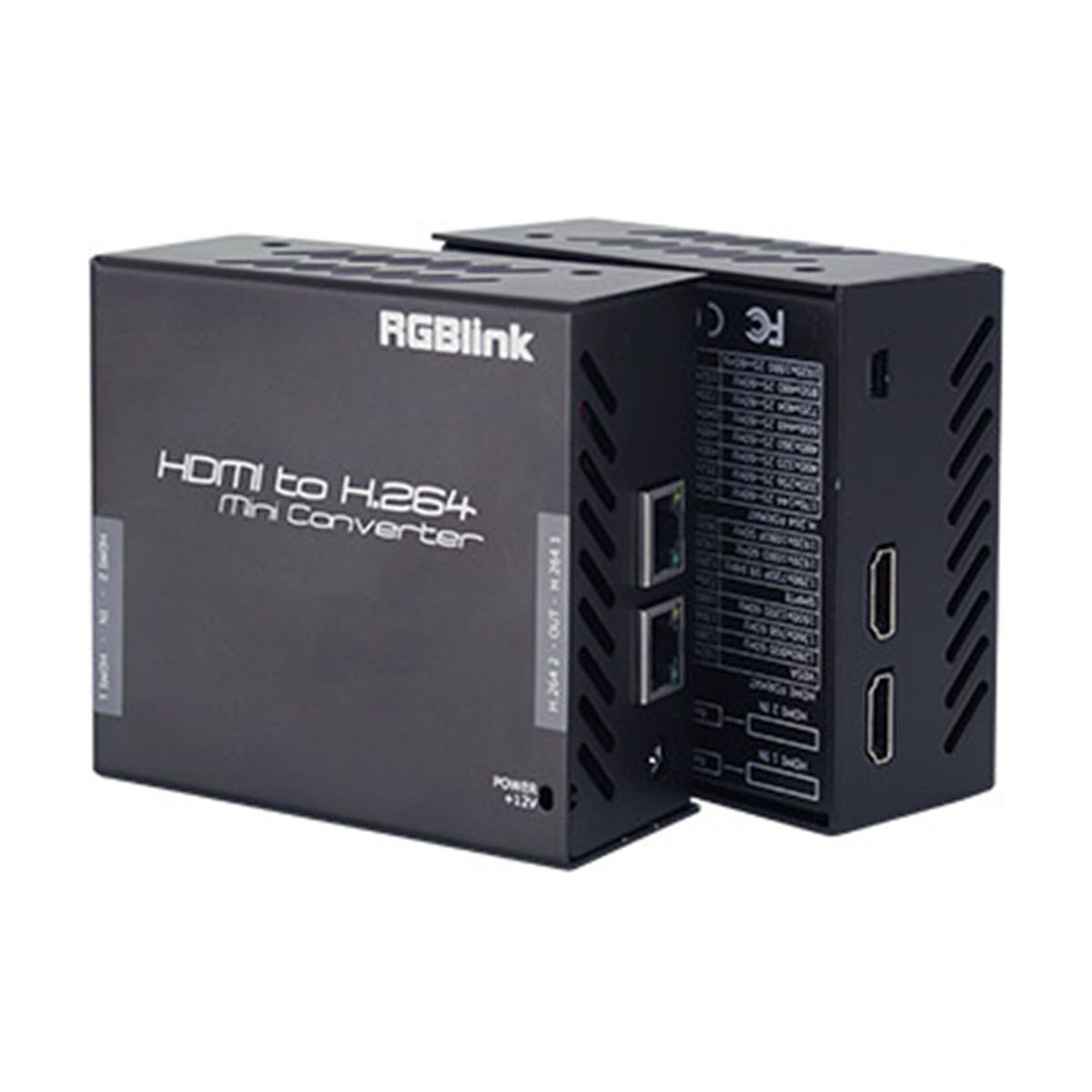

RGBlink - MSP225 - HDMI / H.264 Streaming Encoder

RGBlink - MSP225 - HDMI to H.264 Streaming

This compact convertor provides encoding of HDMI signals to H.264 internet streaming video over IP. Now any video can be streamed to a connected website for viewing, expanding the reach possibilities. MSP225 offers two HDMI input channels and dual RJ45 connectors for IP output and connection to LAN/WAN. Configuration of MSP 225 is made via a web browser interface, providing settings for encoding formats and connection settings for web applications.

Specifications:

Connectors:

• Inputs: 2 × HDMI (HDMI-A)
• Outputs: 2 × H.264 (RJ45)
• Remote Control
• USB
• Power: 5.4mm DC Socket

Performance

• Input Resolution: VESA:

1024x768x60/75/85 | 1280x800x60 | 1280x1024x60/75/85 | 1360x768x60 | 1366x768x60 |
1400x1050x60 |1440x900x60 | 1600x1200x60 |1680x1050x60 | 1920x1080x60

• SMPTE:

480i60 | 576i50 | 720P50/59.94/60 | 1080i50/59.94/60 | 1080P25/29.97/30/50/59.94/60

• Output Resolution

176x144 | 240x180 | 320x180 | 320x240 | 320x256 | 352x228 | 352x480 | 400x224 | 400x320 | 480x270 |
480x272 | 480x320 | 480x360 | 480x384 | 480x480 | 544x480 | 608x448 | 640x360 | 640x480 | 704x576 |
720x404 | 720x480 | 720x540 | 720x576 | 850x480 |1024x576 | 1280x720 | 1680x1056 | 1920x1080

• Refresh Rates: 10~60FPS
• Supported Standard: HDMI 1.3
• H.264: H.264/MPEG-4 AVC

Encoding Protocols

• H.264 baseline/main/high profile L4.2
• MJPEG/JPEG baseline

Power

• Input Voltage: 12V DC (via universal Plug Pack)
• Max Power: 1A
• Environment Temperature: 0℃~45℃
• Humidity: 10%~85%
• Physical Weight: 0.27kg (Net Weight)
• Dimensions: 98mm x 92.9mm x 44mm (Device Dimension)
