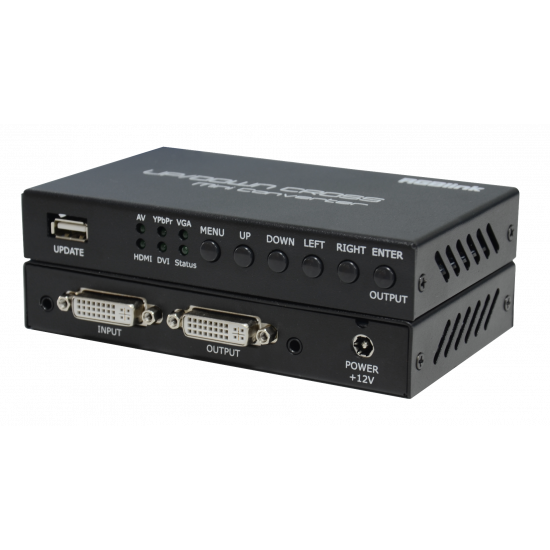

RGBlink - MSP227 - DVI Cross Convertor

RGBlink - MSP227 - DVI Cross Convertor - (AV/YPbPr/VGA/HDMI/DVI)

MSP 227 converts any input of AV/YPbPr/VGA/DVI/HDMI to any output of AV/YPbPr/VGA/ DVI/HDMI. Buttons on the front panel to setup and configure the MSP 227. When no Menu on the screen, "Enter/Output" button works as Output to select output port, such as AV,YPbPr, VGA, DVI or HDMI. Dial Switch on the bottom to set output format. Input/Output resolution: Up to 1920x1200/1920x1080/1600x1200.HDCP compliant.

• Convert any input of AV/YPbPr/VGA/DVI/HDMI
• Picture mode selection
• Color temperature selection
• Auto adjust for screen
• Buttons to setup and configure the MSP 227
• Enter/Output button works as Output to select output port
• Dial Switch on the bottom to set output format
• Input/Output resolution: Up to 1920x1080P@60Hz
• HDCP compliant

Specifications:

Connectors

• Input: 1 × DVI
• Output: 1 × DVI

Performance
Input Resolution:

• HDMI/DVI: Up to 1080p, 1600x1200
• VGA: Up to 1920x1080P@60Hz
• YPbPr: Up to 1920x1080P@60Hz
• AV: PAL / NTSC

Output Resolution

• HDMI/DVI: Up to 1080p, 1600x1200
• VGA: Up to 1920x1080P@60Hz
• YPbPr: Up to 1920x1080P@60Hz
• AV: PAL / NTSC

Supported Standards

• DVI: 1

Power

• Input Voltage: 12V DC
• Max Power: 24W

Environment

• Temperature: 0℃~40℃
• Humidity: -20%~60%

Physical

• Weight: 0.35kg
• Dimensions: 142mm x 89.7mm x 23.5mm
